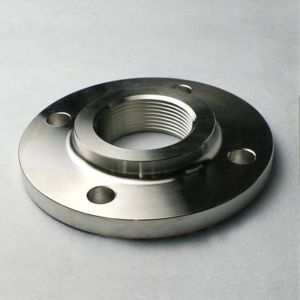

Uday Flanges is a trusted Alloy 20 Threaded Flanges manufacturer and supplier, operated proudly from Dubai, UAE. Uday Flanges stands renowned for providing highly engineered, corrosion-resistant flange solutions. Uday Flanges provides threaded flanges from Alloy 20, a very versatile austenitic nickel-iron-chromium alloy. These flanges are built for use where welding is not possible. They are best used in highly aggressive chemical and high-pressure service conditions. Produced in accordance with international standards such as ASME, ASTM, and ANSI, Alloy 20 threaded flanges provide superior performance, simplicity in installation, and long-lasting durability.
Alloy 20 Threaded Flanges consist of nickel, chromium, iron, molybdenum, and copper and provide excellent resistance to sulfuric acid, pitting, crevice corrosion, and chloride-induced stress corrosion cracking. With tensile properties of about 620 MPa and excellent resistance to corrosion, these flanges are suitable for chemical processing conditions. The threaded configuration allows for quick, reliable connections without welding, which makes them suitable for systems needing frequent disassembly, assembly, or maintenance.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 Alloy 20Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Alloy 20 Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 Threaded Flanges consist of nickel, chromium, iron, molybdenum, and copper and provide excellent resistance to sulfuric acid, pitting, crevice corrosion, and chloride-induced stress corrosion cracking. With tensile properties of about 620 MPa and excellent resistance to corrosion, these flanges are suitable for chemical processing conditions. The threaded configuration allows for quick, reliable connections without welding, which makes them suitable for systems needing frequent disassembly, assembly, or maintenance.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| ASME/ANSI B 16.5 | Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy 20 Threaded Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
