Uday Flanges is a trusted manufacturer and supplier of Aluminium 1100 Flanges, having the pride of operating from Dubai, UAE. For providing light-weighted and corrosion-proofed flange solutions, Uday Flanges provides Aluminium 1100 flanges suitable for low-pressure applications where weight reduction, conductivity, and corrosion resistance are priorities. Manufactured according to international standards like ASTM, ASME, and ANSI, these flanges find their applications in industries like chemical processing, food and beverage, HVAC, and marine systems. Uday Flanges strictly maintains precision, quality, and durability in all products supplied.
Aluminium 1100 Flanges are produced from commercially pure aluminum having a minimum of 99% aluminum content. This grade has good corrosion resistance, high thermal and electrical conductivity, and satisfactory workability. Not heat-treatable, yet possessing respectable strength for light-weighting, Aluminium 1100 has a standard tensile strength of approximately 90–130 MPa. Non-magnetic, non-toxic, weldable, brazable, and formable, flanges of this material are extremely versatile for many non-critical piping and structural applications.

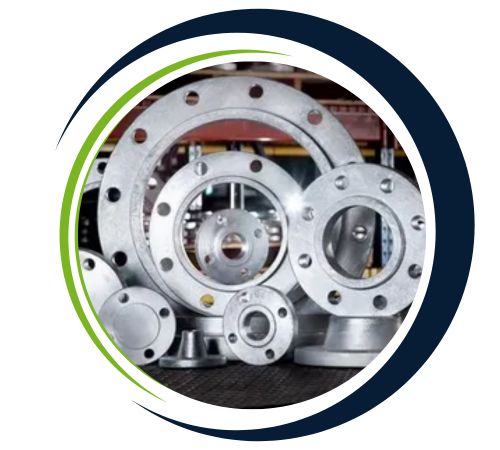

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Aluminium 1100 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Standards : ASTM B247 / B/SB 247
Temper : H14
Thickness : 1 Mm To 100 mm
Diameter : Upto 2000 mm
Flange Diameter : 3″ DIA up to 38″ DIA 1500 lbs max
Flanges Form : Hot Rolled Flanges, Cold Rolled Flange, Proof Machined Flanges
Finish :Mill, Customer specific finish
Aluminum Flange Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| Alloy | Temper | UTS(Mpa) | % Elongation | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 1100 | O | 75 | 110 | 20 | 25 | 29 |
| H12 | 95 | 130 | 5 | 6 | 7 | |
| H14 | 110 | 145 | 3 | 4 | 5 | |
| H16 | 130 | 165 | 2 | 3 | 4 | |
| H18 | 150 | — | 2 | 2 | 3 | |
Aluminium 1100 Flanges are employed extensively in industries which call for corrosion resistance and weight saving, for example, food processing, chemical transport, HVAC systems, marine parts, as well as decorative architectural purposes. Their water, air, and numerous chemicals resistance properties make them perfect for use in areas where steel flanges would corrode. These flanges are particularly perfect for systems demanding moderate strength without having to sacrifice ease of installation and maintenance. Their non-sparking and light character also renders them suitable for use in the aerospace and electrical industries.
Yes, we offer custom sizes for Aluminium 1100 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
