Carbon Steel A36 Flanges Manufacturer and Supplier in Dubai, UAE

Uday Flanges is a prominent Carbon Steel A36 Flanges manufacturer and supplier with its operations based in Dubai, UAE, serving industrial customers. Uday Flanges is well known for manufacturing high-quality and affordable flange solutions. Its A36-grade carbon steel flanges are ideal for use in general structural and light-pressure applications. These flanges are generally used in construction, manufacturing, water systems, and light industrial piping. Produced to international standards like ASTM, ASME, and ANSI, Carbon Steel A36 flanges provide uniform performance, dimensional precision, and long-lasting reliability.

Carbon Steel A36 Flanges Price List in Dubai, Carbon Steel A36 Flange Supplier in Jebel Ali, Carbon Steel A36 Flanges Exporter in Abu Dhabi, Carbon Steel A36 Flange Supplier in Abu Dhabi, Carbon Steel A36 Flanges Exporter in Al Ain, Carbon Steel A36 Flanges Size Chart, CS A36 Flanges Price in Ajman, Carbon Steel A36 Flanges ThickneCS A36, Carbon Steel A36 Flange Supplier in Sharjah, CS A36 Flanges Stockist in Jebel Ali, Carbon Steel A36 Flanges Exporter in UAE

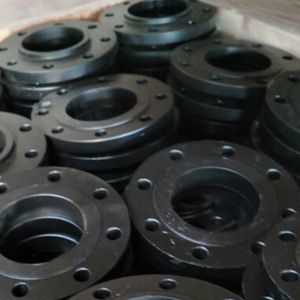

Carbon Steel A36 Blind Flanges

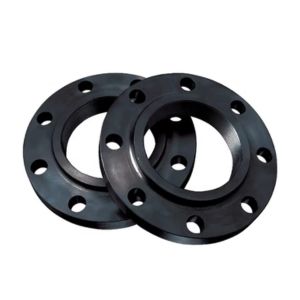

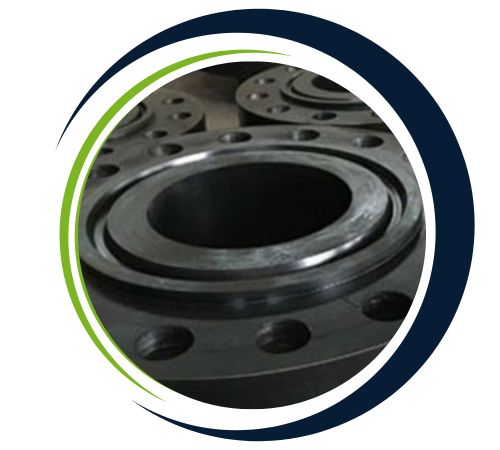

Carbon Steel A36 Slip on Flanges

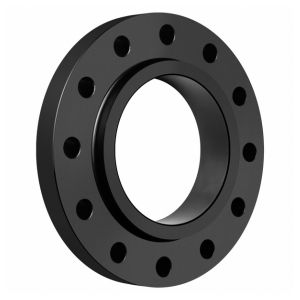

Carbon Steel A36 Lap Joint Flanges

Carbon Steel A36 Flanges are fabricated from ASTM A36 material, which is a low-carbon steel having excellent weldability, favorable machinability, and moderate strength. Having a minimum yield point of 250 MPa and tensile strength from 400–550 MPa, A36 flanges provide good mechanical performance for low- to medium-pressure systems. These flanges find perfect application for ambient temperature operations and are generally supplied in hot-rolled or normalized condition for enhanced toughness and ductility.

Carbon Steel A36 Flange Exporter in UAE, Carbon Steel A36 Flanges Price List in Dubai, Carbon Steel A36 Flanges Supplier in Jebel Ali, Carbon Steel A36 Flanges Exporter in Abu Dhabi, Carbon Steel A36 Flanges Exporter in Al Ain, Carbon Steel A36 Flanges in Ajman, CS A36 Flange Size Chart, Carbon Steel A36 Flanges Price in Ajman, Carbon Steel A36 Flanges Weight Chart, CS A36 Flanges Supplier in Sharjah, Carbon Steel A36 Flanges Stockist in Jebel Ali

Carbon Steel A36 Flanges Specification

Standards	ANSI/ASME B16.5, EN Flanges, BS 10, B16.47 Series A & B, EN-1092, ASME Flanges, BS Flanges, B16.48, DIN, DIN Flanges, GOST Flanges, ANSI Flanges, BS4504.
Size	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Pressure Rating	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Production technique	Forged, Heat treated and machined
Special design	As per your drawing
	AS, ANSI, BS, DIN and JIS
	15 NB (1/2″) to 200 NB (8″)
	Equal and Reducing Configurations
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Small Tongue, Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Tongue & Groove, Large Male-Female (LMF).
Largest Bore Diameter Sizes	NPS ≤ 10
Minimum & Maximum Size	1/2″ To 48″
Origin	Indian / Japan / Korean / West Europe / USA
JIS Standard	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
A182 Flange EN	6Bar 10Bar 16Bar 25Bar 40Bar
Test Certificates	EN 10204/3.1B
	Raw Materials Certificate
	100% Radiography Test Report
	Third Party Inspection Report, etc.
Application	Gas, Power, Chemical, Metallurgy, Petroleum, Shipbuilding, Construction etc.

Carbon Steel A36 Flanges Chemical Composition

Grade	C	Si	Mn	P	S	Mo	Ni	Cr	Cu	V
A36	0.25 max	0.40 max	0.80 – 1.20	0.040 max	0.050 max	–	–	–	–	–

Carbon Steel A36 Flanges Mechanical Properties

Grade	Yield Strength ReH N/mm2	Tensile Strength Rm N/mm2	Elongation ( A )	Impact Test ( J )
A36	250 min	400 – 550	20% min	–

Largest Carbon Steel A36 Flanges Supplier in Dubai, UAE

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Carbon Steel A36 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Carbon Steel A36 Flanges are applied extensively in structural piping, HVAC, water distribution, construction frameworks, and machinery fabrication. Their cost effectiveness, ease of fabricating, and sound performance qualify them for use in non-critical applications for infrastructure, utility piping, and light-duty process lines. They are simple to cut, weld, and assemble, providing an economical and effective solution where corrosion resistance is not a major consideration. Carbon Steel A36 flanges are a cost-effective, long-lasting option to use in piping connections within general-purpose industries.

Carbon Steel A36 Flanges Exporter in Jebel Ali, CS A36 Flange Sizes in mm, Carbon Steel A36 Manufacturer in Abu Dhabi, Carbon Steel A36 Flange ThickneCS A36, Carbon Steel A36 Flanges Supplier in Dubai, Carbon Steel A36 Flanges Price List in Sharjah, Carbon Steel A36 Flange Distributor in Al Ain, Carbon Steel A36 Flanges Supplier in Abu Dhabi, Carbon Steel A36 Flanges Distributor in UAE

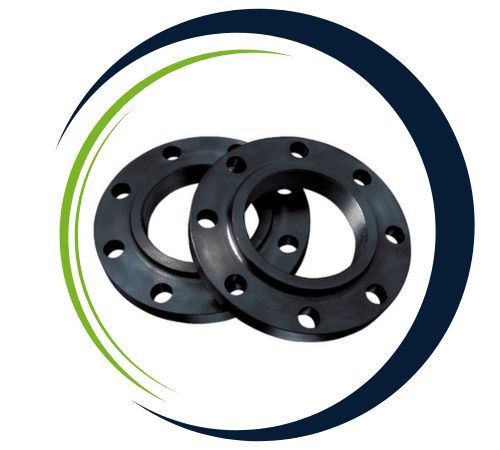

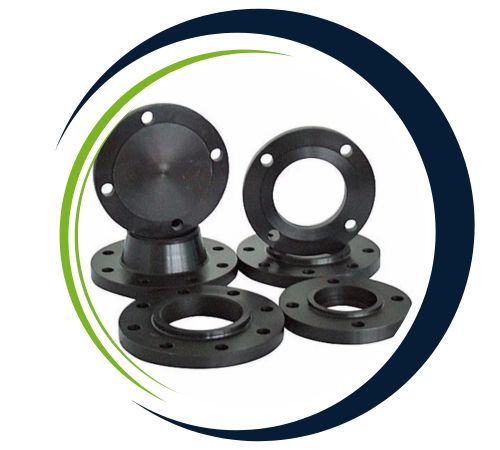

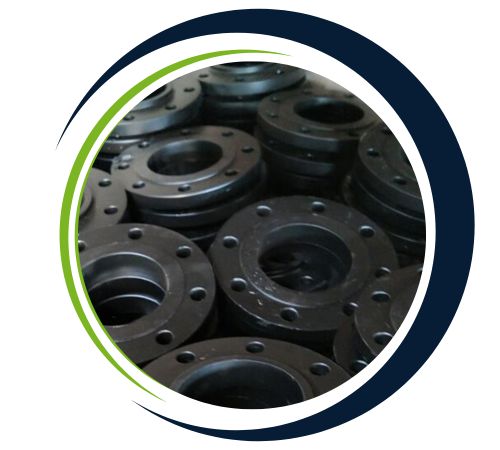

Types of Carbon Steel A36 Flanges

Are Custom Sizes Available for Carbon Steel A36 Flanges?

Yes, we offer custom sizes for Carbon Steel A36 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
