Uday Flanges is a well-known manufacturer and exporter of F65 Carbon Steel Flanges, proudly based in Dubai, UAE. Renowned for producing strong and high-strength piping materials, Uday Flanges supplies F65 flanges that are specifically suitable for application in sour service and high-pressure applications. F65 flanges find extensive application in the oil & gas industry, particularly in offshore and deep drilling conditions, owing to their superior mechanical properties and resistance to corrosion. All flanges are produced in compliance with global standards like ASTM, ASME, and API to ensure safety, reliability, and accuracy.
Carbon Steel F65 Flanges are produced using API 5L Grade X65 equivalent to ASTM A694 F65 carbon steel that possesses high yield strength and toughness. These flanges provide yield strength of 450 MPa and tensile strength of up to 625 MPa, which makes them ideal for high-pressure pipelines. The material offers good weldability, reasonable corrosion resistance, and excellent performance in sour gas and low-temperature service. F65 flanges are usually normalized or quenched and tempered for strength and structure.
| Specification Chart Of : | ASTM A694 F65 Flanges |
|---|---|
| ASTM/ ASME Standard Materials | Cast Iron, Inconel, Mild Steel, Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness Calculation AS Per ASME | NPS ≤ 18 |
| Length Chart | (1/2″) To (48″) |
| Manufacturing Process For Flanges |
|
| High Temperature Chart | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards Manufacturer | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Minimum Size Of Bore Diameter | NPS ≤ 10 |
| Dimensions | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Pressure Test | 150 LB To 2500 LB |

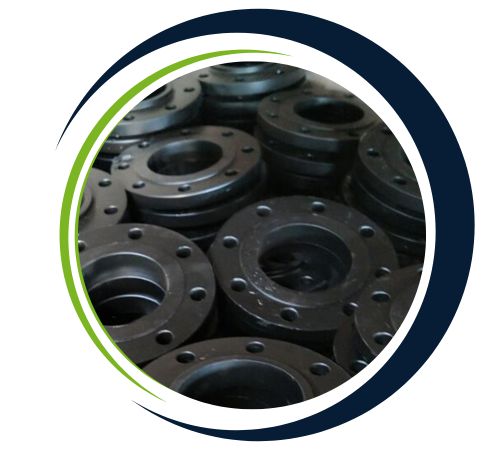

| Different Face Type | Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face, Raised Face, Large Tongue & Large Male-Female And Small Male-Female |
| Accept All Small And Large Order Of Type | Blind, Threaded, Lap Joint, Slip-On, Socket-Weld, Weld Neck |
| Application Use In Various Industry | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Flange Making Format | Forged/ Plate/ Threaded |
| Grade | C | Mn | P | S | Si |
| ASTM A694 F65 Flanges | 0.26-0.265 | 1.60-1.64 | 0.025-0.030 | 0.025-0.030 | 0.15-0.35 |
| Element Of A694 | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ASTM A694 F65 Flanges | 415 | 450 | 20 % |

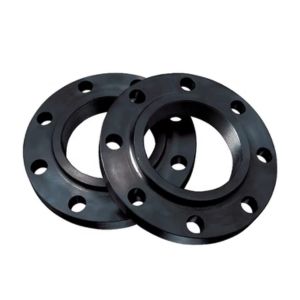

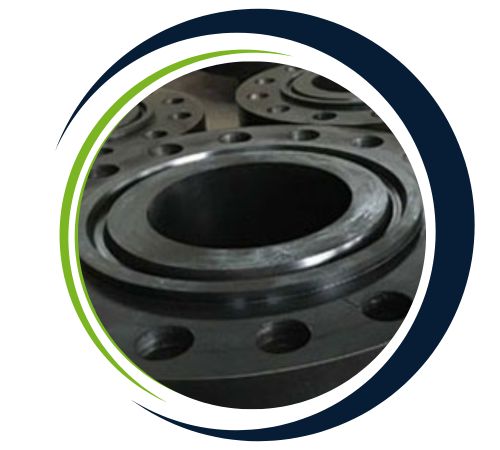

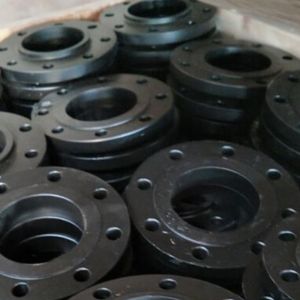

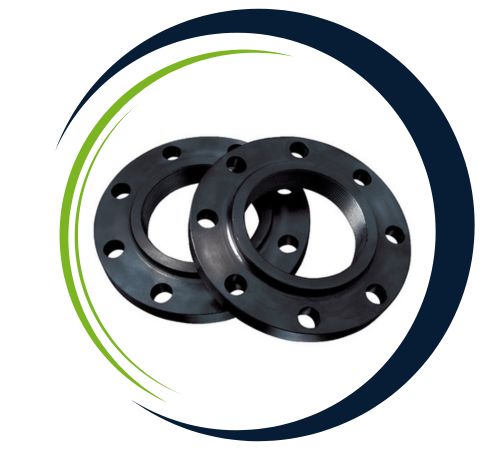

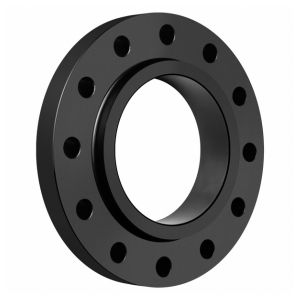

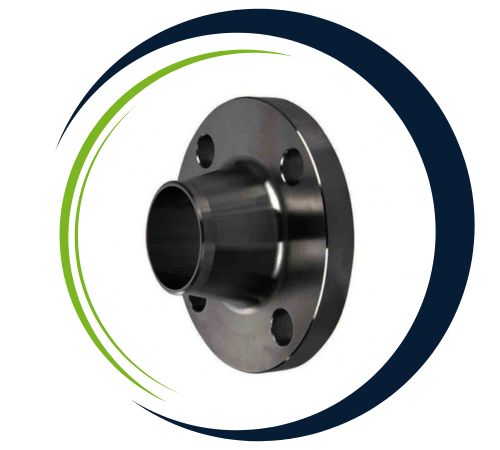

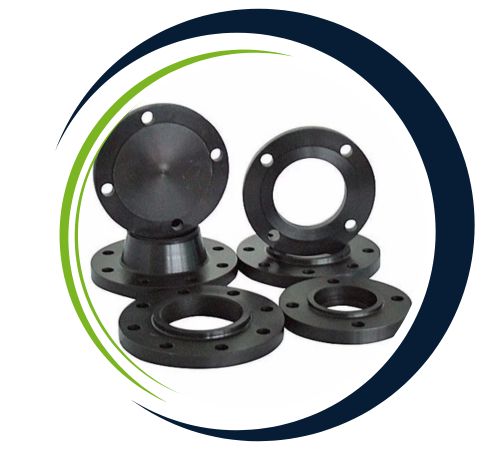

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Carbon Steel F65 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
F65 Carbon Steel Flanges find application in high-pressure pipelines for transmitting pressure, subsea pipelines for hydrocarbon transmission, offshore exploration platforms, and natural gas processing plants. They are best suited for oil, gas, and other hydrocarbons transportation in harsh environments. Their ability to withstand fluctuating pressures and their high strength-to-weight ratio qualify them for applications where failure cannot occur. F65 flanges find themselves used in systems where strength is demanded along with resistance against hydrogen sulfide (H₂S) and other aggressive media.
Yes, we offer custom sizes for Carbon Steel F65 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
