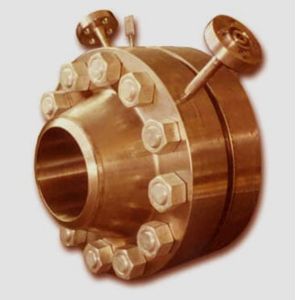

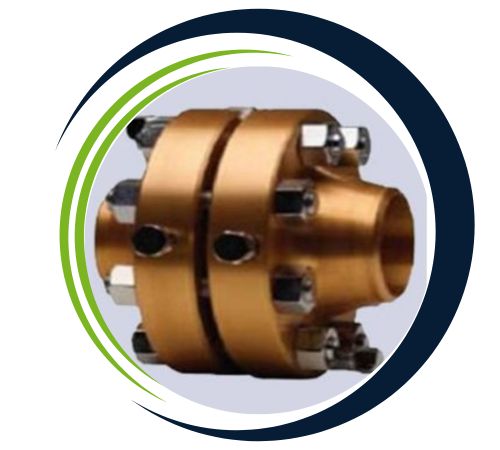

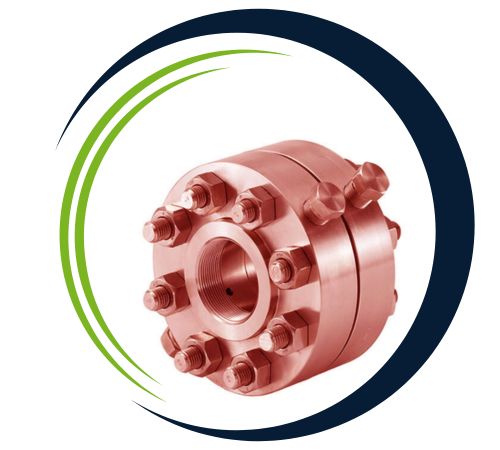

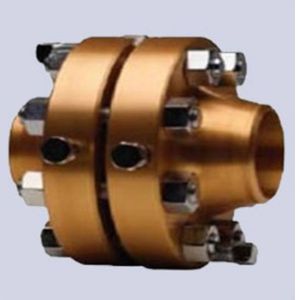

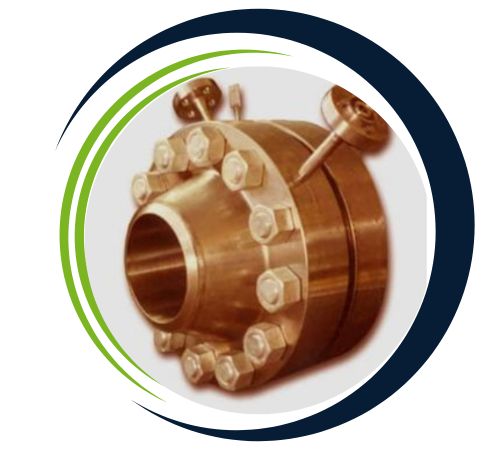

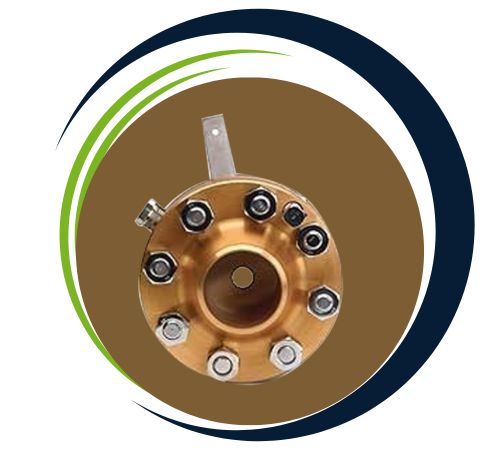

Uday Flanges is a well-respected manufacturer and supplier of Copper Nickel Orifice Flanges based inDubai, UAE. They provide top-notch solutions for precise flow measurement in both corrosive and marine environments. These flanges are specifically designed to accommodate orifice plates used for differential pressure flow metering, and they come with pressure tap holes to ensure accurate readings. Crafted from high-performance Copper Nickel alloys like Cu-Ni 90/10 and 70/30, Uday Flanges adheres to ASTM B151/B467 and other international standards. Industries around the globe trust these flanges, which are perfect for applications that demand high corrosion resistance and measurement accuracy, even in tough conditions.
Copper Nickel Orifice Flanges typically consist of 90% copper and 10% nickel or 70% copper and 30% nickel, with small amounts of iron and manganese added to boost strength and corrosion resistance. These alloys are known for their excellent resistance to seawater corrosion, erosion, and stress corrosion cracking. They boast mechanical properties that include a tensile strength ranging from 275 to 400 MPa and good ductility, making them suitable for both welding and machining. The sturdy design of orifice flanges guarantees a tight, secure fit for orifice plates and reliable pressure tapping, even when flow and temperature fluctuate.
Uday Flanges, a premier supplier in Dubai, UAE, specializes in high-quality Copper Nickel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Product Name | Orifice Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Flange Face Types / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Hub OD | Weld Neck OD | Welding Neck Length | RF Dia. | RF Height | PCD | Orifice Hole dia | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 1/2 | 240 | 1 5/8 | M39 | 247 |
You’ll find Copper Nickel Orifice Flanges widely used in marine, offshore, and desalination industries, where accurate flow measurement in corrosive conditions is crucial. Common applications include seawater cooling systems, bilge and ballast pipelines, firewater systems, and fluid monitoring systems on ships and offshore platforms. These flanges offer a reliable method for measuring flow rates in piping systems that transport seawater or other corrosive fluids. Their corrosion-resistant features, paired with the precision of differential pressure measurement, make Copper Nickel Orifice Flanges vital for ensuring operational efficiency, safety, and compliance in essential marine and industrial processes.
Yes, we offer custom sizes for Copper Nickel Orifice Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
