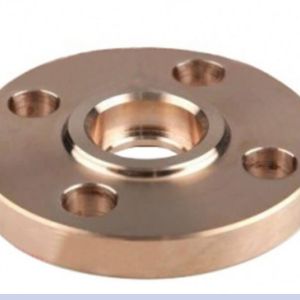

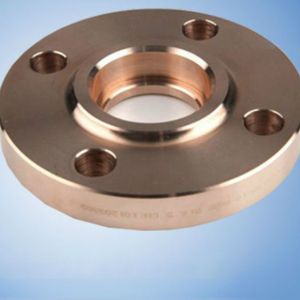

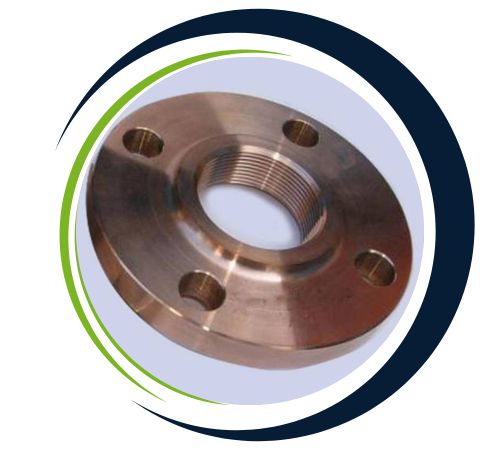

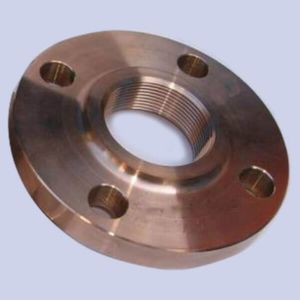

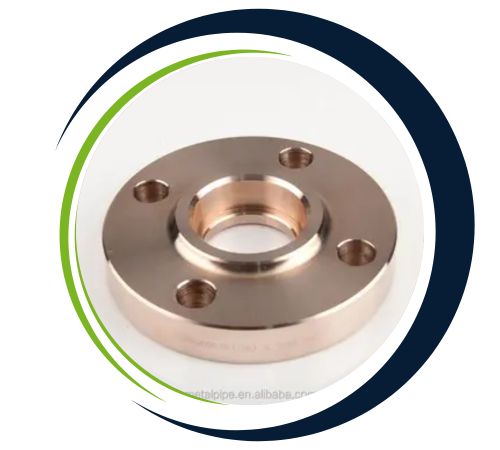

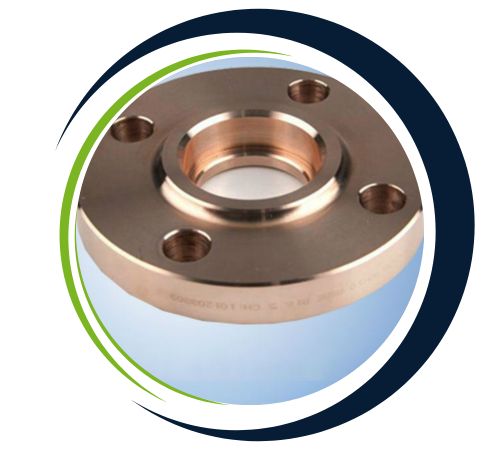

Uday Flanges stands out as a top-notch manufacturer and supplier of Copper Nickel Ring Type Joint (RTJ) Flanges right inDubai, UAE. They’re well-known for providing high-performance, corrosion-resistant flange solutions that are essential for critical marine and offshore applications. These RTJ flanges are expertly crafted for high-pressure systems, ensuring a solid metal-to-metal seal thanks to a precisely machined groove and ring gasket. Using premium Cu-Ni alloys like 70/30 and 90/10, Uday Flanges adheres to international standards such as ASTM B151 and B467. With a stellar reputation for durability and precision, they serve various sectors, including shipbuilding, desalination, offshore drilling, and chemical processing.
When it comes to composition, Copper Nickel RTJ Flanges typically consist of 70–90% copper and 10–30% nickel, with a touch of iron and manganese to boost strength and corrosion resistance. These flanges boast impressive mechanical properties, featuring tensile strength between 275–400 MPa, along with exceptional resistance to biofouling, seawater corrosion, and stress corrosion cracking. The RTJ design guarantees a leak-proof seal even under high-pressure conditions, making them perfect for extreme service environments. Their high thermal conductivity and ductility further enhance their performance in dynamic fluid and temperature scenarios.
| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, 90/10-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 F316 Copper Nickel Flanges |

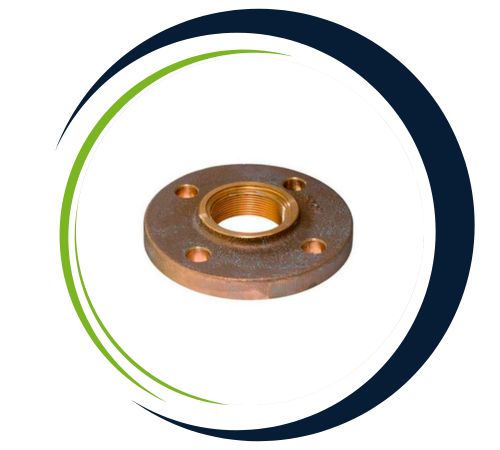

| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Copper Nickel RTJ Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

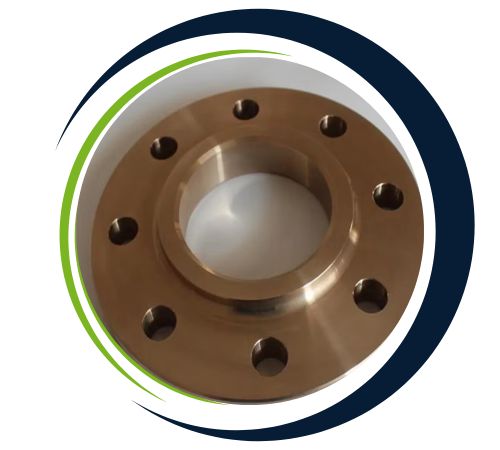

You’ll find Copper Nickel RTJ Flanges commonly used in high-pressure and high-temperature piping systems, particularly in settings that face constant exposure to seawater and corrosive fluids. They’re often found in offshore platforms, shipboard systems, desalination plants, heat exchangers, and marine cooling circuits. The RTJ design ensures a reliable metal-to-metal seal, which is crucial for critical services where leaks simply aren’t an option. These flanges are perfect for systems that demand both structural integrity and corrosion resistance, delivering long-lasting performance with minimal maintenance, even in challenging coastal and submerged environments.

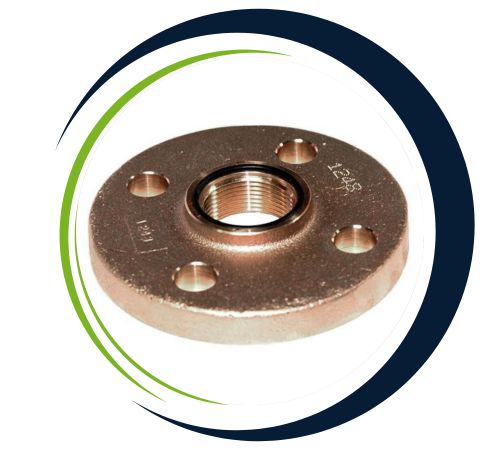

| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel RTJ Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
