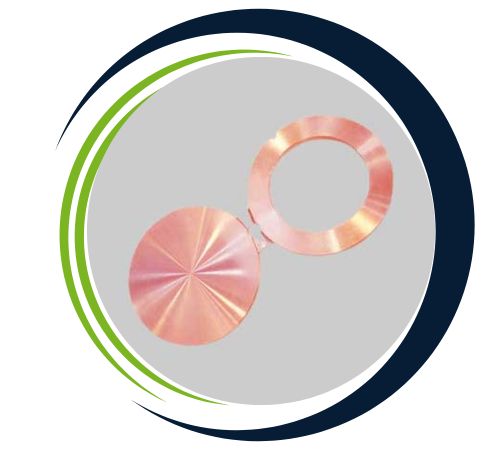

Copper Nickel Spectacle Flanges are unique piping components designed to either isolate or reconnect sections of pipelines in marine and industrial settings. Crafted from durable, corrosion-resistant copper-nickel alloys like 90/10 (C70600) and 70/30 (C71500), these flanges feature two discs—one solid and one open—joined by a web or hinge. Uday Flanges, a reputable manufacturer and supplier based in Dubai, UAE, provides precision-engineered Copper Nickel Spectacle Flanges that meet international standards such as ASME, ASTM, and DIN. Perfect for saltwater environments, these flanges are commonly found in shipbuilding, offshore installations, desalination systems, and coastal power plants, making pipeline maintenance and flow control a breeze.
Typically made from 90/10 (90% copper, 10% nickel) or 70/30 (70% copper, 30% nickel) Cu-Ni alloys, Copper Nickel Spectacle Flanges boast remarkable resistance to seawater corrosion, erosion, and biofouling. Their mechanical properties include tensile strength ranging from 275 to 520 MPa and yield strength between 105 and 210 MPa, depending on the specific alloy. With outstanding ductility, toughness, and thermal conductivity, these flanges deliver reliable performance even in challenging environments. The alloy’s inherent resistance to marine growth and scaling makes them perfect for long-term use in submerged and coastal conditions.
| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.48, B16.47 Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 90/10 Copper Nickel Flanges |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Copper Nickel Spectacle Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Copper Nickel Spectacle Flanges find extensive use in marine engineering, shipbuilding, desalination plants, and offshore oil and gas facilities for regulating flow and isolating systems. They facilitate easy transitions between open and closed positions in pipelines during maintenance, pressure testing, or shutdowns. Thanks to their high corrosion resistance, they are ideal for seawater cooling systems, ballast systems, fire protection lines, and heat exchangers. Additionally, they are utilized in naval vessels and coastal infrastructure projects. Uday Flanges ensures that these components are crafted to the highest standards, providing reliability and efficiency in various applications.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
| ASME/ANSI B 16.48 | Spectacle Blind Flange |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 90/10, 600, 900 |
| ASME/ANSI B 16.36 | Spectacle Blind Flange |
| PRESSURE CLASS | 300, 90/10, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 90/10 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Spectacle Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
