Uday Flanges is a trusted name in the manufacturing and supply of GOST 12821-80 flanges, proudly based inDubai, UAE. Our flanges meet the Russian standard GOST 12821-80, which is widely utilized in CIS countries and industries that demand strong piping solutions. Built to withstand high pressure and temperature, these flanges are designed for reliable, leak-proof connections in tough industrial settings. Uday Flanges offers a wide variety of flange sizes and pressure ratings, all while adhering to international quality standards. With a commitment to precision manufacturing and prompt delivery, we cater to the oil & gas, chemical, power, and infrastructure sectors around the globe.
GOST 12821-80 flanges are generally made from carbon steel grades like Steel 20, Steel 09G2S, and various alloy steels, including 12Cr1MoV. Their chemical makeup includes carbon, manganese, silicon, chromium, and molybdenum, all carefully balanced for optimal strength and resistance to corrosion. The mechanical properties showcase tensile strengths from 400 to 650 MPa and yield strengths between 240 and 420 MPa, depending on the specific material grade. These flanges are known for their excellent weldability and toughness, making them ideal for high-pressure and high-temperature applications in industrial piping systems.
| Standard | GOST / ГОСТ 12820-80 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

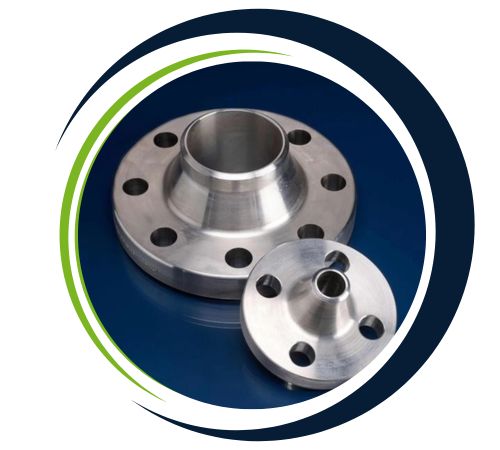

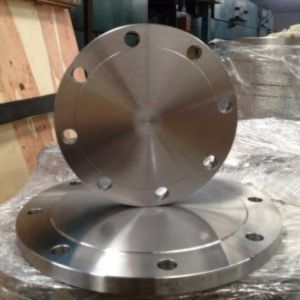

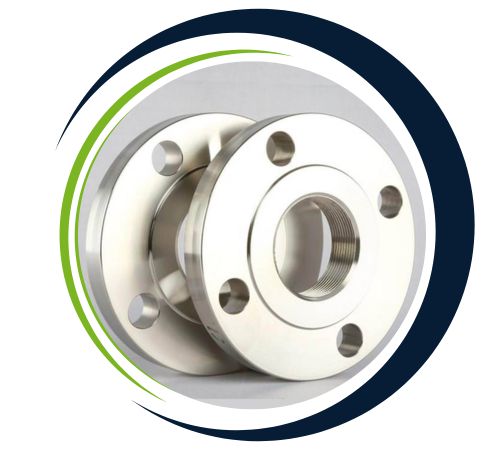

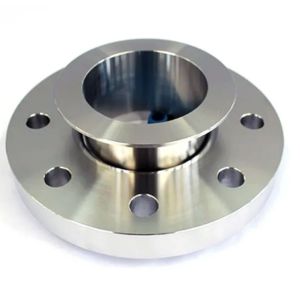

Uday Flanges a leading supplier in Dubai, UAE, offers an extensive selection of GOST 12820-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
GOST 12821-80 flanges find extensive use in high-pressure piping systems across the oil & gas, petrochemical, power generation, and chemical processing sectors. Their sturdy design ensures secure connections for pipes, valves, pumps, and pressure vessels that operate under high temperatures and pressures. Commonly found in refineries, pipelines, and thermal power plants, these flanges create safe, leak-proof joints that are essential for operational safety. While GOST 12821-80 flanges are particularly popular in regions that follow Russian standards, they are also recognized globally for their reliability and durability.
| Pressure PN = 0.6 MPa (6 kgf/s m²) | |||||||
| Designation | D, mm | D1, mm | dv, mm | b, mm | d, mm | answer, pcs. | Mass, kg. |
| Flat flange GOST 12820-80 (01) 1-15-6 st.3 (20) | 80 | 55 | 19 | 10 | 11 | 4 | 0,33 |
| Flat flange GOST 12820-80 (01) 1-20-6 st.3 (20) | 90 | 65 | 26 | 12 | 0,53 | ||
| Flat flange GOST 12820-80 (01) 1-25-6 st.3 (20) | 100 | 75 | 33 | 12 | 0,64 | ||
| Flat flange GOST 12820-80 (01) 1-32-6 st.3 (20) | 120 | 90 | 39 | 13 | 14 | 1,01 | |
| Flat flange GOST 12820-80 (01) 1-40-6 st.3 (20) | 130 | 100 | 46 | 13 | 1,21 | ||
| Flat flange GOST 12820-80 (01) 1-50-6 st.3 (20) | 140 | 110 | 59 | 13 | 1,33 | ||
| Flat flange GOST 12820-80 (01) 1-65-6 st.3 (20) | 160 | 130 | 78 | 13 | 1,63 | ||
| Flat flange GOST 12820-80 (01) 1-80-6 st.3 (20) | 185 | 150 | 91 | 15 | 18 | 2,44 | |
| Flat flange GOST 12820-80 (01) 1-100-6 st.3 (20) | 205 | 170 | 110 | 15 | 2,85 | ||
| Flat flange GOST 12820-80 (01) 1-125-6 st.3 (20) | 235 | 200 | 135 | 17 | 8 | 3,88 | |
| Flat flange GOST 12820-80 (01) 1-150-6 st.3 (20) | 260 | 225 | 161 | 17 | 4,39 | ||
| Flat flange GOST 12820-80 (01) 1-200-6 st.3 (20) | 315 | 280 | 222 | 19 | 5,89 | ||
| Flat flange GOST 12820-80 (01) 1-250-6 st.3 (20) | 370 | 335 | 273 | 20 | 12 | 7,67 | |
| Flat flange GOST 12820-80 (01) 1-300-6 st.3 (20) | 435 | 395 | 325 | 20 | 22 | 10,28 | |
| Flat flange GOST 12820-80 (01) 1-350-6 st.3 (20) | 485 | 445 | 377 | 22 | 12,58 | ||
| Flat flange GOST 12820-80 (01) 1-400-6 st.3 (20) | 535 | 495 | 426 | 24 | 16 | 15,2 | |
| Flat flange GOST 12820-80 (01) 1-500-6 st.3 (20) | 640 | 600 | 530 | 25 | 19,72 | ||
| Flat flange GOST 12820-80 (01) 1-600-6 st.3 (20) | 755 | 705 | 630 | 25 | 26 | 20 | 26,24 |
| Flat flange GOST 12820-80 (01) 1-800-6 st.3 (20) | 975 | 920 | 820 | 27 | 30 | 24 | 46,14 |
| Flat flange GOST 12820-80 (01) 1-1000-6 st.3 (20) | 1 175 | 1 120 | 1 020 | 31 | 28 | 64,36 | |
| Flat flange GOST 12820-80 (01) 1-1200-6 st.3 (20) | 1 400 | 1 340 | 1 220 | 34 | 33 | 32 | 99,03 |
Yes, we offer custom sizes for GOST 12820-80 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
