Uday Flanges stands out as a top manufacturer and supplier of GOST 12821-80 flanges right here inDubai, UAE. We pride ourselves on delivering high-quality flange solutions that meet Russian and CIS standards. Our steel flanges are crafted to adhere to GOST 12821-80 specifications, ensuring they work seamlessly with pressure vessels, pipelines, and industrial equipment designed for high-pressure scenarios. Our selection features weld neck flanges that cater to pressure ratings ranging from PN 1.6 MPa to PN 20.0 MPa. With a strong commitment to precision, durability, and compliance, Uday Flanges supports industries such as oil & gas, petrochemicals, power generation, and heavy machinery across the globe.
When it comes to GOST 12821-80 flanges, they’re typically made from carbon steel or alloy steel, including popular grades like 20, 09G2S, and 12X18H10T (stainless steel). These flanges are engineered to handle significant mechanical and thermal stress. While the mechanical properties can vary based on the material, you can generally expect tensile strength between 450–600 MPa and yield strength from 235–345 MPa. They provide reliable sealing and excellent weldability, making them perfect for high-pressure and high-temperature systems.
| Standard | GOST / ГОСТ 12821-80 |
| Size | 1/2″ to 48″ |
| UNI | 6Bar 16Bar 10Bar 25Bar 40Bar |
| Class | 300 LBS, 150 LBS, 900 LBS, 600 LBS, 1500 LBS, 2500 LBS |
| EN | 6Bar 25Bar 10Bar 40Bar 16Bar |
| Flanges Face Type Provided By Manufacturer | RF (Raised Face), RTJ (Ring Type Joint) |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Value Added Services | CNC Machining, Customised Flanges |
| Outer diameters | 1/2” to 24” |
| Making Methods Provided By Manufacturer | Casting And Forging Rolling And Cutting |
| JIS | 5K, 16 K 10 K, 20 K, 40 K, 30 K, 63 K |
| Flanges Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Coating/Surface Treatment By Manufacturer | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flanges Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
| Standards Provided By Manufacturer | BS4504, BS 10, API7S-15, JISB2220, BS1560-3.1, ANSI/ASME B16.5/16.36/16.47A/16.47B, EN1092, DIN, API7S-43, API605, B16.48, ISO70051, MSS S44 |

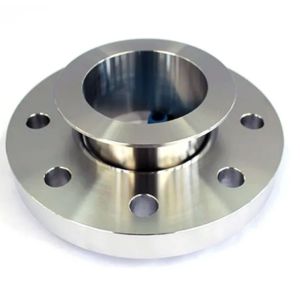

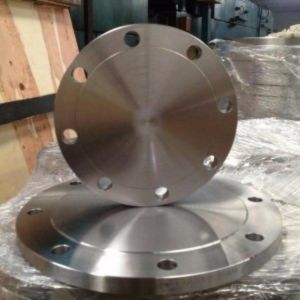

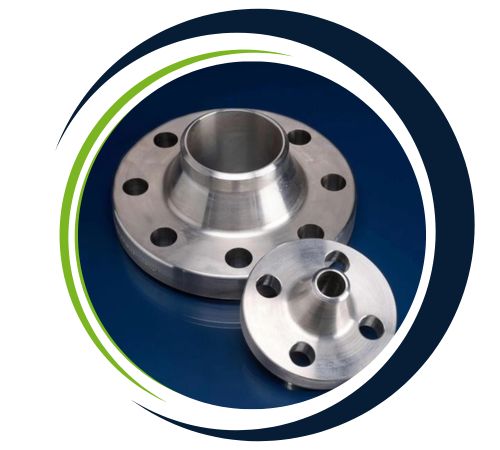

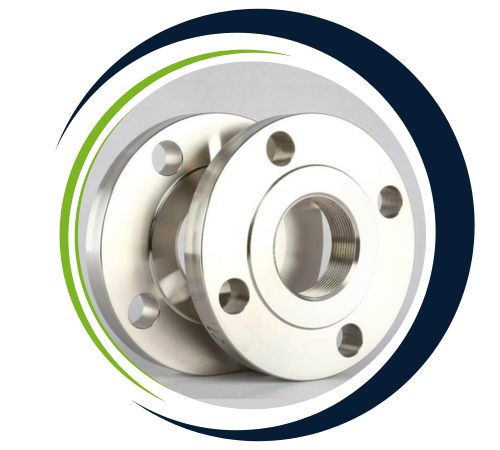

Uday Flanges a leading supplier in Dubai, UAE, offers an extensive selection of GOST 12821-80 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
GOST 12821-80 flanges are a go-to choice in industries that need robust and secure pipe connections under high pressure. You’ll often find them in oil refineries, gas pipelines, thermal and nuclear power plants, and chemical processing facilities. These flanges are well-suited for transporting steam, gas, oil, and other aggressive media. Their compatibility with Russian and Eastern European systems makes them vital for international projects and retrofits involving equipment built to GOST standards. Thanks to their high performance and resilience, GOST 12821-80 flanges are the preferred option for critical infrastructure and industrial applications.
| Conditional passage Dy | (b) | (d1) | (Dn) | (Dm) | Mass, kg | ||||
| connecting projection (C) | protrusion (C) | hollow (C) | thorn (C) | groove (C) | |||||
| 10 | 10 | 8 | 15 | 22 | 0,34 | 0,34 | 0,32 | 0,34 | 0,33 |
| 15 | 12 | 19 | 28 | 0,40 | 0,40 | 0,38 | 0,40 | 0,40 | |
| 20 | 18 | 26 | 36 | 0,53 | 0,53 | 0,50 | 0,53 | 0,52 | |
| 25 | 12 | 25 | 33 | 42 | 0,76 | 0,77 | 0,72 | 0,75 | 0,75 |
| 32 | 31 | 39 | 50 | 1,10 | 1,08 | 1,04 | 1,08 | 1,08 | |
| 40 | 38 | 46 | 60 | 1,36 | 1,37 | 1,28 | 1,30 | 1,34 | |
| 50 | 49 | 58 | 70 | 1,53 | 1,51 | 1,44 | 1,46 | 1,47 | |
| 65 | 66 | 77 | 88 | 1,97 | 2,06 | 1,83 | 1,72 | 1,75 | |
| 80 | 13 | 78 | 90 | 102 | 2,76 | 2,76 | 2,80 | 2,65 | 2,72 |
| 100 | 96 | 110 | 122 | 3,35 | 3,04 | 3,03 | 3,03 | 3,04 | |
| 125 | 15 | 121 | 135 | 148 | 4,66 | 4,24 | 3,66 | 4,50 | 4,55 |
| 150 | 146 | 161 | 172 | 5,37 | 5,85 | 4,93 | 5,29 | 5,35 | |
| (175) | 17 | 177 | 196 | 210 | 7,32 | 8,10 | 6,92 | 7,11 | 7,16 |
| 200 | 202 | 222 | 235 | 8,37 | 9,35 | 7,75 | 7,98 | 8,05 | |
| (225) | 226 | 248 | 260 | 9,45 | 9,25 | 8,72 | 8,98 | 9,06 | |
| 250 | 18 | 254 | 278 | 288 | 10,99 | 10,69 | 10,14 | 12,20 | 12,30 |
| 300 | 303 | 330 | 340 | 14,82 | 14,28 | 14,10 | 13,81 | 14,11 | |
| 350 | 351 | 382 | 390 | 17,69 | 18,65 | 17,64 | 16,35 | 16,72 | |
| 400 | 398 | 432 | 440 | 20,55 | 19,69 | 19,30 | 18,83 | 19,31 | |
| (450) | 450 | 484 | 494 | 23,63 | 23,60 | 21,90 | 21,62 | 22,24 | |
| 500 | 19 | 501 | 535 | 545 | 26,63 | 29,10 | 25,90 | 24,44 | 25,10 |
| 600 | 602 | 636 | 650 | 35,79 | 35,60 | 33,40 | 37,49 | 33,67 | |
| (700) | 692 | 726 | 740 | 44,31 | 44,10 | 41,10 | 40,60 | 41,86 | |
| 800 | 792 | 826 | 844 | 56,17 | 55,20 | 52,20 | 51,67 | 53,36 | |
| (900) | 21 | 892 | 926 | 944 | 66,79 | – | – | – | – |
| 1000 | 992 | 1028 | 1044 | 73,51 | |||||
| 1200 | 23 | 1192 | 1228 | 1248 | 111,43 | ||||
| 1400 | 27 | 1392 | 1428 | 1456 | 156,58 | ||||
| 1600 | 32 | 1592 | 1628 | 1660 | 218,57 | ||||
Yes, we offer custom sizes for GOST 12821-80 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
