Nickel Alloy 201 Flanges Manufacturer and Supplier in Dubai, UAE

Uday Flanges is a reliable manufacturer and supplier of high-performance flanges headquartered inDubai, UAE, with niche products such as Nickel Alloy 201 Flanges. With experience in supplying precision-engineered products, Uday Flanges serves various industries such as chemical processing, oil & gas, pharmaceuticals, and marine industries. Committed to quality, longevity, and compliance with international standards, the company makes sure every flange adheres to essential performance specifications. Their quality production facilities and customer-oriented focus have established Uday Flanges as a go-to supplier of corrosion-resistant, heat-stable flange products for a range of demanding industrial applications.

Nickel Alloy DIN 2.4068 Flanges Supplier in Al Ain, Nickel Alloy 201 Flanges Ajman, Nickel 201 Flanges Suppliers in Abu Dhabi, UNS N02201 Flanges Price in UAE, DIN 2.4068 Flanges Price List in Sharjah, Alloy 201 Flanges Stockist in Sharjah, UNS N02201 Flanges Price List in Ajman

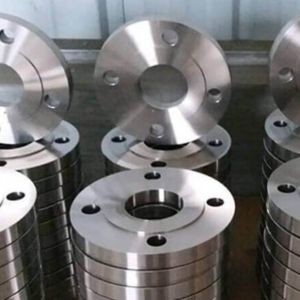

Nickel Alloy 201 Flanges

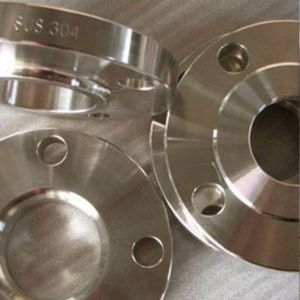

Nickel Alloy 201 Raised Face Flanges

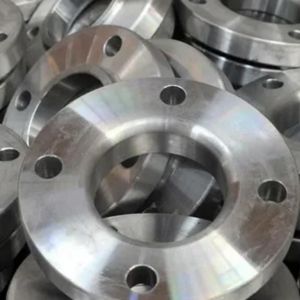

Nickel Alloy 201 RTJ Flange

Nickel Alloy 201 Flanges consist mainly of commercially pure wrought nickel (about 99.6% Ni), along with minor amounts of iron, carbon, and other elements. The low-carbon form of Nickel 200 has superior resistance to corrosive environments, particularly in reducing media. The mechanical properties are high ductility, low hardness, and good electrical and thermal conductivity. It possesses a tensile strength of approximately 403 MPa and a yield strength of about 103 MPa. Nickel Alloy 201 Flanges are non-magnetic in nature and possess mechanical integrity in a broad range of temperatures, and therefore, they can be used in cryogenic as well as high-temperature service.

UNS N02201 Flanges Weight Chart in Sharjah, Nickel Alloy 201 Flanges Supplier in Jebel Ali, DIN 2.4068 Flanges Stockists in Abu Dhabi, Alloy 201 Flanges Dealer in Al Ain, UNS N02201 Flanges Price in Ajman, Nickel Alloy 201 Flanges Weight Chart, Nickel DIN 2.4068 Flanges Weight Chart

Nickel Alloy 201 Flanges Specification

Grade	Nickel Alloy 201 / UNS N02201
Standard	ASTM B564, ASME SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2″ – 48″ (15NB – 1201NB)
Class / Pressure Rating	150 Class, 300 Class, 201 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.

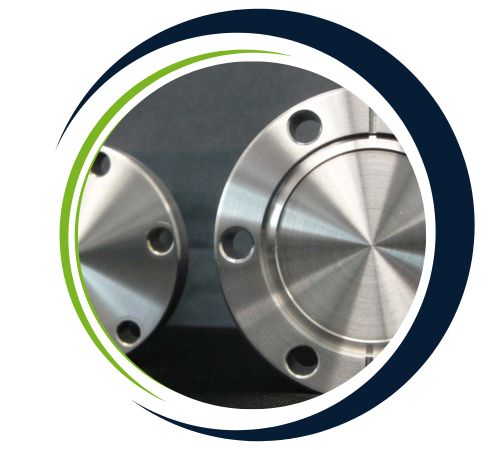

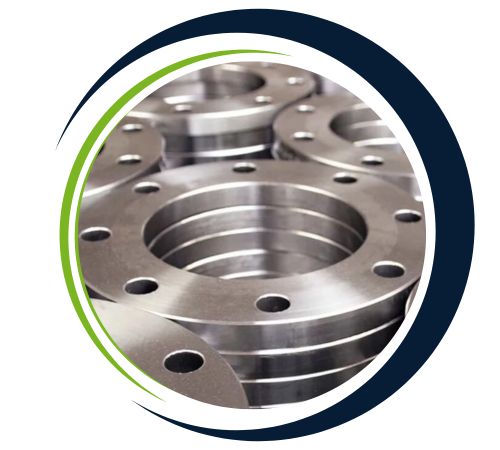

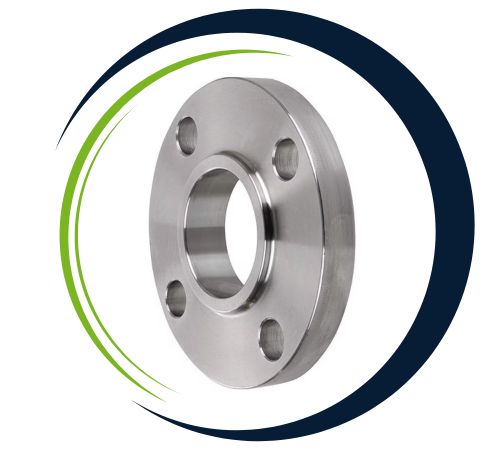

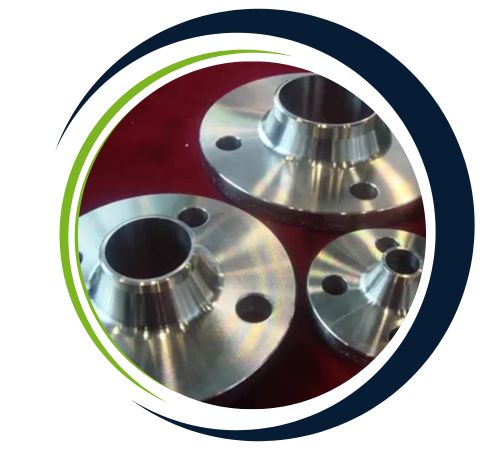

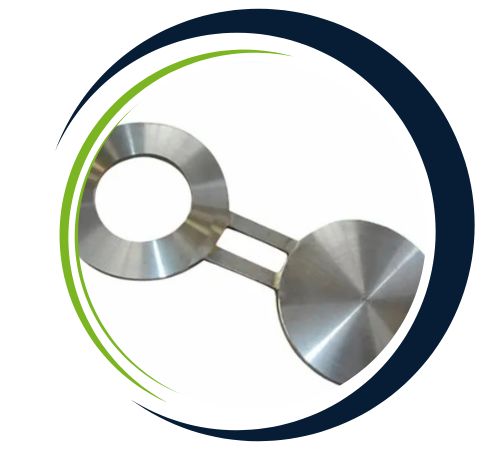

Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Nickel Alloy 201 Flanges Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Mg	Ti	S
Nickel 201	99.0 min	0.4 max	0.02 max	0.35 max	0.2 max	0.25 max	0.15 max	0.1 max	0.01 max

Nickel Alloy 201 Flanges Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades of Nickel Alloy 201 Flanges

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Nickel 201	2.4068	N02201	НП-2	–	NW 2201	NA 12	NLC-Ni 99

Largest Nickel Alloy 201 Flanges Supplier in Dubai, UAE

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Nickel Alloy 201 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Nickel Alloy 201 Flanges are widely applied in applications that demand excellent corrosion resistance along with high thermal stability. The common applications are chemical process equipment, food processing devices, caustic handling equipment, aerospace parts, and marine fittings. They operate well in conditions under alkalis, acids, and neutral salts. Their strength against dry fluorine, hydrogen chloride, and other aggressive chemicals qualifies them for reactors, piping systems, and heat exchangers. Also, being non-magnetic and having low gas content, they are best suited for electronic and nuclear-grade uses where purity and functionality are of great importance.

ASTM B564 Nickel Alloy Flanges Supplier in Dubai, Nickel Alloy 201 Flanges Exporters in Jebel Ali, UNS N02201 Flanges Manufacturers in Abu Dhabi, DIN 2.4068 Flanges Price List in Sharjah, UNS N02201 Flanges Dealer in Abu Dhabi, Alloy 201 Flanges Manufacturers in Al Ain, Nickel Alloy 201 Flanges Suppliers in Jebel Ali, DIN 2.4068 Flanges Dealers in Dubai

Types of Nickel Alloy 201 Flanges

Dimensions of Nickel Alloy 201 Flanges

Size in Inch	Size in mm	Outer Diameter	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	Bore	RF Diameter	RF Height	PCD	Weld Face
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	Refer Note	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6

Size of NICKEL ALLOY 201 Flanges

Normal Sizes In inch	Dimension	Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Are Custom Sizes Available for Nickel Alloy 201 Flanges?

Yes, we offer custom sizes for Nickel Alloy 201 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
