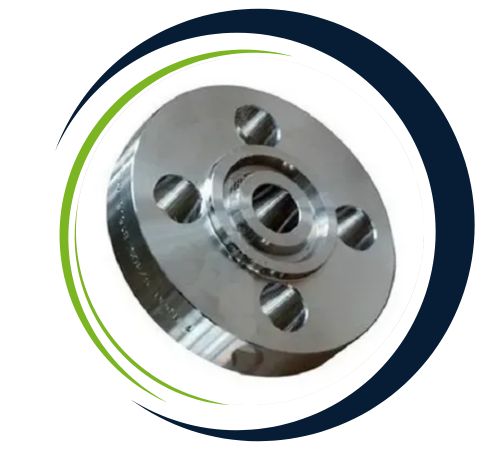

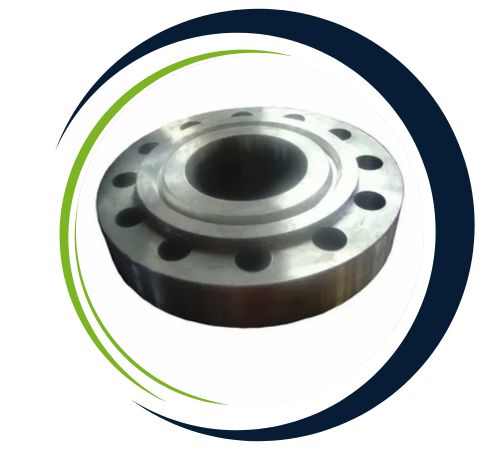

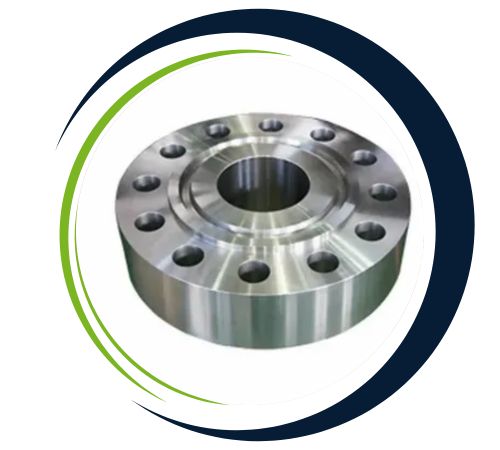

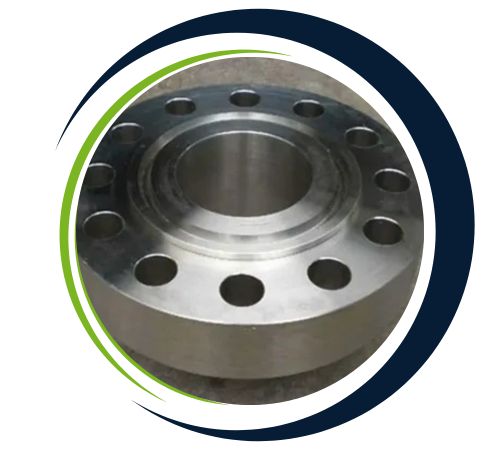

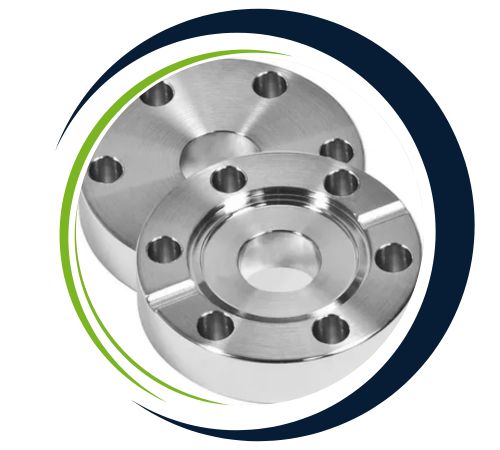

Uday Flanges is a reliable producer and supplier of Nickel Alloy RTJ Flanges, serving the industrial sector from its UAE base in Dubai. Renowned for precision manufacturing and high-quality material sourcing, Uday Flanges provides RTJ flanges that are produced using high-grade nickel alloys to be used in high-temperature, high-pressure, and corrosive environments. These flanges establish a leak-tight, robust metal-to-metal seal and are widely used in oil & gas, petrochemical, and power generation systems. Products are all made to satisfy strict international codes such as ASME, ASTM, and ANSI.
Nickel Alloy RTJ Flanges are fabricated from high-performance nickel-based alloys like Alloy 200, Alloy 201, Inconel, Monel, and Hastelloy. These alloys provide superior resistance to corrosion, oxidation, and stress corrosion cracking, even under extreme conditions with acids, seawater, and high temperatures. Mechanical properties also include high tensile strength (up to 800 MPa, based on grade) and excellent thermal and structural stability. RTJ design allows for accurate, high-integrity sealing through machined grooves and metal gaskets, making them ideal for critical pipeline and pressure vessel fittings.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, 201-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 F316 Nickel Alloy Flanges |
| Grades | Nickel Alloy 200, 201 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Nickel Alloy RTJ Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Nickel Alloy RTJ Flanges are extensively employed in applications that require dependable sealing under high pressures and corrosive media—e.g., offshore drilling, chemical process, refineries, and subsea systems. They are best suited for high-pressure pipelines, valve fitting, and pressure vessels for handling aggressive chemicals, sour gas, or superheated steam. The ring-type joint concept avoids leaks even under thermal cycling and high vibration. With superior chemical resistance and mechanical properties, Nickel Alloy RTJ flanges provide safe operation and strength under the most severe service conditions.
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Nickel Alloy RTJ Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
