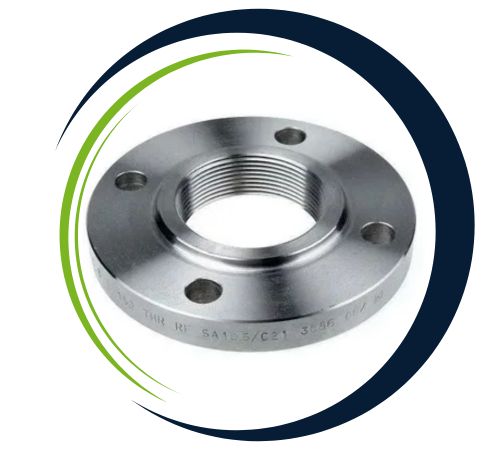

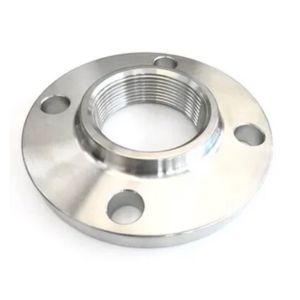

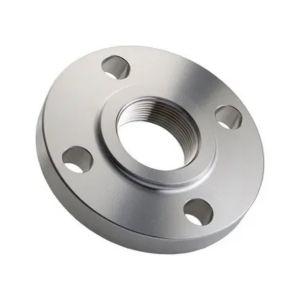

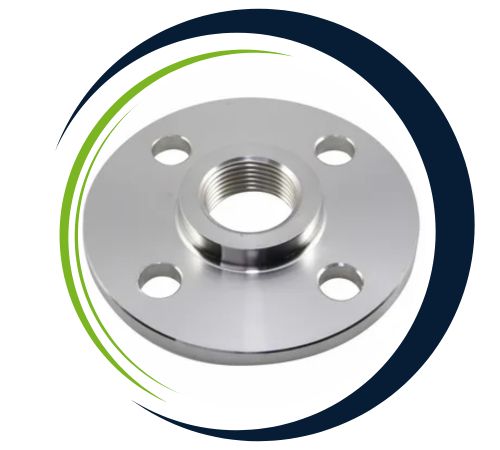

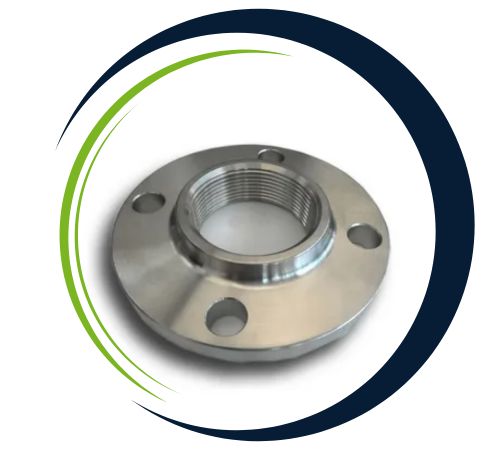

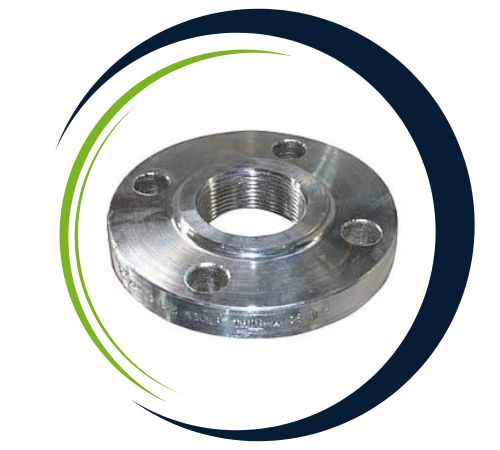

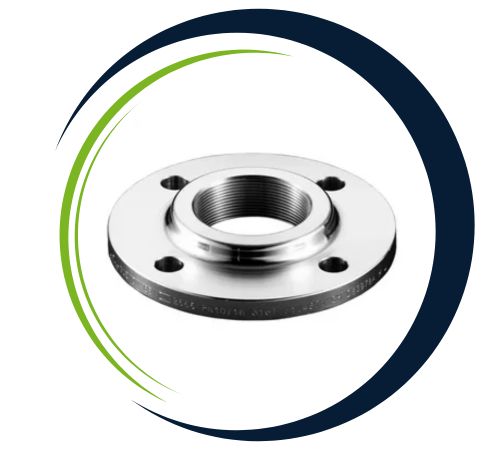

Uday Flanges is a reputable manufacturer and supplier located inDubai, UAE, celebrated for its high-performance Super Duplex Steel Threaded Flanges. With a strong focus on quality and innovation, Uday Flanges provides flanges that adhere to strict international standards, catering to a wide range of industrial applications. Their Super Duplex Steel Threaded Flanges are meticulously engineered for reliability and durability in challenging environments. Renowned for prompt deliveries, competitive pricing, and excellent customer support, Uday Flanges has established itself as a go-to source for corrosion-resistant flange solutions in the oil & gas, petrochemical, marine, and chemical processing sectors, both domestically and internationally.
Super Duplex Steel Threaded Flanges are primarily made up of chromium (24–26%), nickel (6–8%), molybdenum (3–4%), nitrogen, and manganese, providing outstanding corrosion resistance and strength. These flanges boast impressive mechanical properties, including a tensile strength of around 800 MPa and a yield strength of about 550 MPa. They also show remarkable impact toughness and resistance to stress corrosion cracking in chloride-rich environments. The unique dual-phase microstructure of austenite and ferrite enhances both durability and weldability, making them perfect for high-pressure, high-temperature applications, especially in demanding industrial settings.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F53 Super Duplex Steel Flanges |
| Grades | Super Duplex Steel S32760, F53, F52, S32950, S32750, F55 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Super Duplex Steel Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super Duplex Steel Threaded Flanges find extensive use in industries that require exceptional strength and corrosion resistance, particularly in areas with high chloride levels. This includes offshore oil and gas platforms, subsea pipelines, desalination plants, chemical and petrochemical processing, marine environments, and heat exchangers. Their threaded design facilitates easy installation and removal without the need for welding, making them ideal for systems that require frequent maintenance or are in tight spaces. Their strong resistance to pitting, crevice corrosion, and stress corrosion cracking ensures reliability and a long service life, especially in aggressive and high-pressure environments.
| ASME/ANSI B 16.5 | Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Threaded Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
