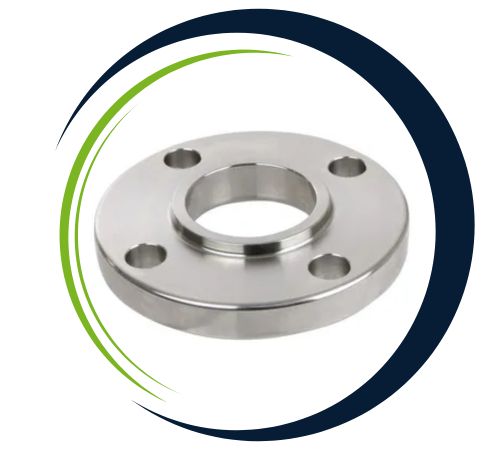

Uday Flanges is a trusted producer and exporter of Titanium Flat Flanges with its headquarters located inDubai, UAE. They are known for their engineering accuracy and quality material and have been providing high-performance flange solutions that meet the challenging requirements of industry. Their Titanium Flat Flanges are designed in strict compliance with international quality standards, having very high durability, corrosion resistance, and precise sealing performance. Servicing industries including aerospace, marine, chemical processing, and energy, Uday Flanges offers effective service, timely delivery, and professional assistance. Dedicated to quality and innovation, they are a reliable source of Titanium Flat Flanges in the United States and worldwide.
Titanium Flat Flanges are largely produced from titanium Grades 2 and 5 with a chemical composition highly concentrated in titanium (≥ 90%) accompanied by traces of aluminum and vanadium in Grade 5. The flanges have very good mechanical properties such as tensile strength of 344 MPa to 895 MPa, yield strength of 275 MPa to 828 MPa, and good ductility with elongation of 10% to 30%. The light weight and superior resistance to corrosion of Titanium render these flanges specifically suited for application in harsh environments. They are non-magnetic, biocompatible, and resistant to high temperatures and provide strength, durability, and low maintenance in critical applications.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Flat Flanges are applied in industries where corrosion resistance, high strength, and low weight are critical. They are generally used in chemical processing facilities, offshore and marine systems, desalination plants, aerospace hardware, and power generation equipment. These flanges achieve a leak-tight, secure connection that is suitable for low-pressure piping networks and are particularly prized in piping carrying corrosive chemicals such as seawater, acids, and chlorides. Titanium Flat Flanges are also commonly employed in medical devices and equipment used in the pharmaceutical industry because they are biocompatible. Their durability under harsh conditions makes them last longer and require low maintenance.
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
