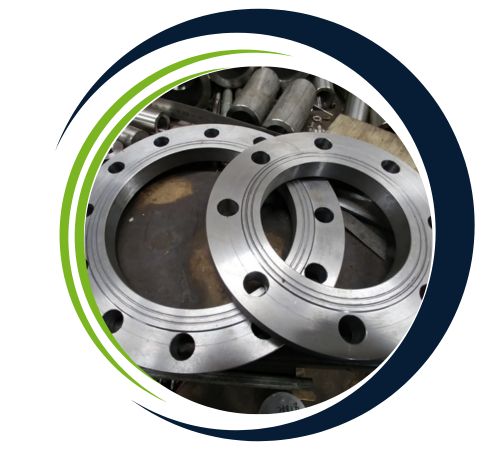

Alloy Steel Forged Flanges are top-notch components crafted through a forging process that guarantees exceptional mechanical strength, structural integrity, and long-lasting durability. These flanges are made from alloy steels infused with elements like chromium, molybdenum, and nickel, making them capable of withstanding extreme pressure, high temperatures, and harsh corrosive environments. Uday Flanges, a well-respected manufacturer and supplier based in Dubai, UAE, provides a comprehensive selection of Alloy Steel Forged Flanges that meet international standards such as ASTM A182, ASME B16.5, and DIN. You’ll find these flanges widely utilized in power generation, petrochemical facilities, oil & gas systems, and demanding industrial applications.
Typically, Alloy Steel Forged Flanges are produced from grades like ASTM A182 F1, F5, F9, F11, F22, and F91. These flanges are enriched with alloying elements such as chromium (up to 12%), molybdenum, and nickel, which boost their strength, toughness, and heat resistance. The forging process refines the grain structure, enhancing fatigue resistance and overall mechanical properties. Their tensile strength ranges from 450 to 690 MPa, while yield strength falls between 240 and 520 MPa, depending on the specific grade. These flanges excel in resisting thermal fatigue, creep, and corrosion, making them perfect for demanding pressure system conditions.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Alloy Steel Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy Steel Forged Flanges are essential in critical applications that demand high strength and performance under extreme pressure and temperature. They are commonly found in industries like oil & gas, petrochemicals, power generation, refineries, shipbuilding, and high-temperature steam and water lines. These flanges are particularly effective for connecting pressure vessels, heat exchangers, boilers, and process piping in environments that involve corrosive fluids and thermal cycling. Thanks to their forged construction, they ensure maximum integrity and leak-proof performance in high-stress systems. Uday Flanges offers a variety of Alloy Steel Forged Flanges, including weld neck types, to meet diverse needs.
| ASME/ANSI B 16.5 | Forged Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Forged Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Forged Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Forged |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | DIN WERKSTOFF NR. | UNS |
| Alloy F1 | 1.5415 | K12822 |
| ASTM A182 F5 | 1.7362 | K41545 |
| ASTM A182 F9 | 1.7386 | K90941 |
| ASTM A182 F11 | 1.7335 | K11597 |
| ASTM A182 F22 | 1.7380 | K21590 |
| ASTM A182 F91 | 1.4903 | K21590 |
Yes, we offer custom sizes for Alloy Steel Forged Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
