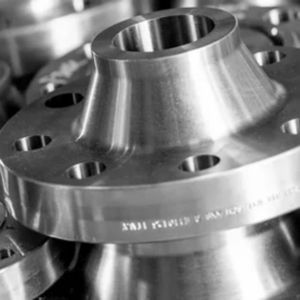

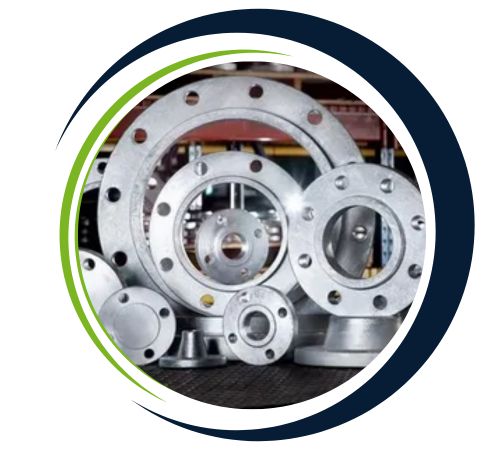

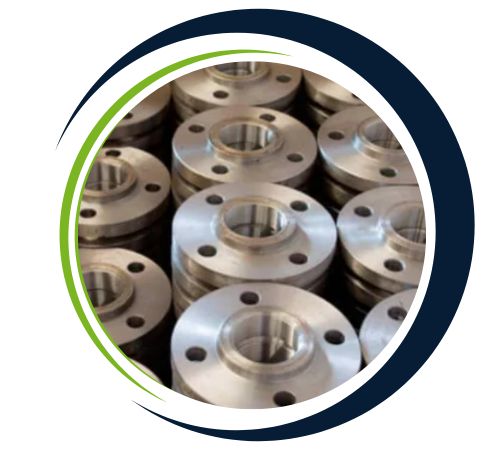

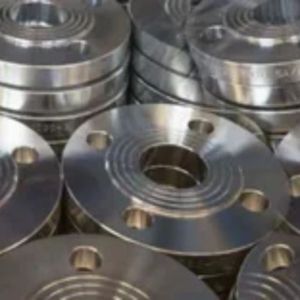

Typically, BS 10 Table E Flanges are made from carbon steel, stainless steel, or other corrosion-resistant alloys, depending on the specific application. They come with either a flat face or raised face design, making them suitable for moderate pressure systems. While the mechanical properties can vary based on the material, they generally boast good tensile strength, corrosion resistance, and excellent weldability. Their standardized bolt circle and drilling patterns make installation a breeze and ensure compatibility with older British piping systems and related components.

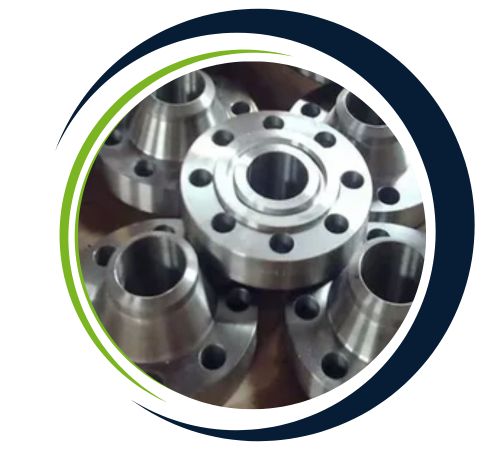

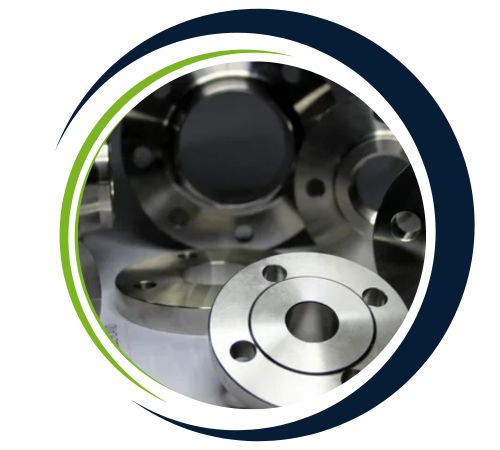

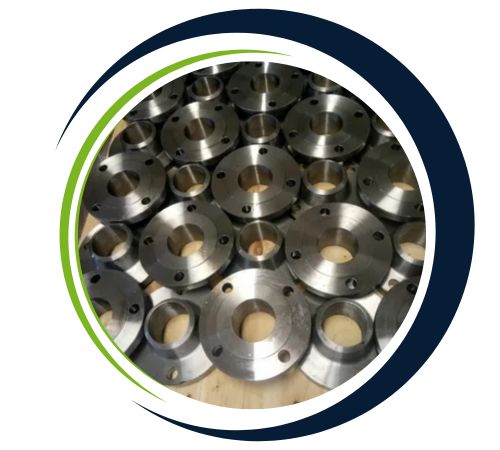

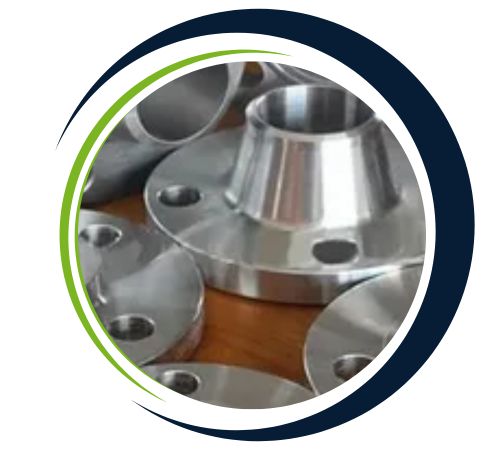

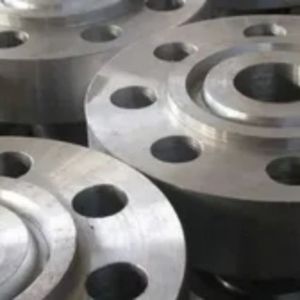

| Size | (1/2″) To (48″) |
|---|---|
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| N.B. SIZE | D | K | L | A | C | N1 | N2 | B | H1 | H2 | R1 | R2 | HOLES | |
| IN | mm | |||||||||||||
| ½” | 15 | 95.3 | 66.8 | 14.5 | 21.3 | 6.4 | 27.0 | 33.3 | 22.4 | 9.5 | 22.2 | 6.4 | 1.6 | 4 |
| ¾” | 20 | 101.6 | 73.2 | 14.5 | 26.7 | 6.4 | 33.3 | 38.1 | 27.7 | 11.1 | 22.2 | 6.4 | 1.6 | 4 |
| 1″ | 25 | 114.3 | 82.6 | 14.5 | 33.5 | 7.2 | 42.9 | 47.6 | 34.6 | 11.1 | 22.2 | 6.4 | 1.6 | 4 |
| 1 ¼” | 32 | 120.7 | 87.4 | 14.5 | 42.2 | 7.9 | 49.2 | 55.6 | 43.2 | 11.1 | 25.4 | 6.4 | 1.6 | 4 |
| 1 ½” | 40 | 133.4 | 98.6 | 14.5 | 48.3 | 8.7 | 58.7 | 61.9 | 49.5 | 12.7 | 28.6 | 6.4 | 1.6 | 4 |
| 2″ | 50 | 152.4 | 114.3 | 17.5 | 60.5 | 9.5 | 69.9 | 74.6 | 62.0 | 12.7 | 28.6 | 6.4 | 1.6 | 4 |
| 2 ½” | 65 | 165.1 | 127.0 | 17.5 | 73.2 | 10.3 | 82.6 | 90.5 | 74.7 | 15.9 | 31.8 | 6.4 | 1.6 | 4 |
| 3″ | 80 | 184.2 | 146.1 | 17.5 | 88.9 | 11.1 | 101.6 | 106.4 | 90.7 | 15.9 | 34.9 | 6.4 | 1.6 | 4 |
| 3 ½” | 88 | 203.2 | 165.1 | 17.5 | 101.6 | 11.9 | 114.3 | 119.1 | 103.4 | 17.5 | 34.9 | 6.4 | 1.6 | 4 |
| 4″ | 100 | 215.9 | 177.8 | 17.5 | 114.3 | 12.7 | 130.2 | 133.4 | 116.1 | 19.1 | 41.3 | 9.5 | 3.2 | 4 |
| 5″ | 125 | 254.0 | 209.6 | 17.5 | 141.2 | 14.3 | 152.4 | 160.3 | 143.8 | 19.1 | 44.5 | 9.5 | 3.2 | 8 |
| 6″ | 150 | 279.4 | 235.0 | 17.5 | 168.4 | 17.5 | 184.2 | 185.7 | 171.7 | 19.1 | 47.6 | 9.5 | 3.2 | 8 |
| 8″ | 200 | 336.6 | 292.1 | 17.5 | 219.2 | 19.1 | 241.3 | 241.3 | 221.5 | 22.2 | 50.8 | 9.5 | 3.2 | 8 |
| 10″ | 250 | 406.4 | 355.6 | 22.2 | 273.1 | 22.2 | 292.1 | 298.5 | 276.4 | 27.0 | 63.5 | 9.5 | 3.2 | 8 |
| 12″ | 300 | 457.2 | 406.4 | 22.2 | 323.9 | 25.4 | 342.9 | 349.3 | 325.9 | 28.6 | 69.9 | 9.5 | 4.8 | 12 |
| 14″ | 350 | 527.1 | 469.9 | 25.4 | 355.6 | 28.6 | 406.4 | – | 359.2 | – | 73.0 | 9.5 | 4.8 | 12 |
| 16″ | 400 | 577.9 | 520.7 | 25.4 | 406.4 | 31.8 | 431.8 | – | 410.5 | – | – | – | – | 12 |
| 18″ | 450 | 641.4 | 584.2 | 25.4 | 457.2 | 34.9 | – | – | 461.8 | – | – | – | – | 12 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| BS 10 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 |
You’ll find BS 10 Table E Flanges commonly used in water distribution, HVAC piping, shipbuilding, irrigation, and general utility services. They’re perfect for low-pressure fluid systems that need durable, leak-proof connections without the hefty price tag of heavy-duty flanges. With their ease of maintenance, straightforward fabrication, and wide availability of materials, they offer a cost-effective solution for both commercial and industrial installations. Whether you’re retrofitting older systems or setting up new low-pressure pipelines, BS 10 Table E flanges deliver reliable performance backed by a proven design.
Yes, we offer custom sizes for BS 10 Table E Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
