Uday Flanges, located inDubai, UAE, is a reliable manufacturer and supplier of **Carbon Steel Plate Flanges** providing value-for-money, long-lasting solutions for industrial piping systems across various industries. Uday Flanges caters to industries including oil & gas, power generation, water treatment, and construction and manufactures flanges to ASTM, ASME, and other international standards. With an emphasis on accuracy, strength, and rapid delivery, the company makes certain its plate flanges provide consistent sealing, simplicity of installation, and long-term performance in low- and moderate-pressure service.

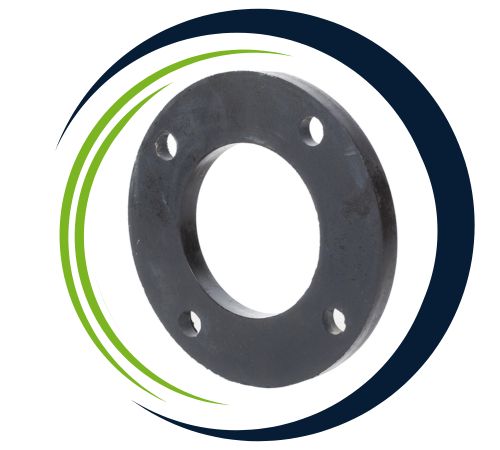

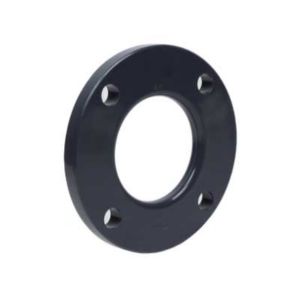

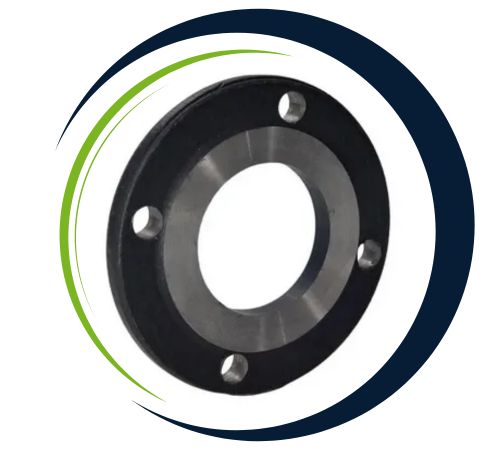

**Carbon Steel Plate Flanges** are typically manufactured from grades such as ASTM A105 or A516, with good mechanical strength, tensile strength between 415 to 620 MPa, and good weldability. These flanges are ring-shaped discs that are flat and lack a hub. They are intended to be welded to a pipe or fitting end. Because of their minimal design, they are well suited to applications where there is not much space or where rapid disassembly is desired. While frequently utilized in low-pressure service, they can be coated or lined to enhance corrosion resistance in more demanding environments.

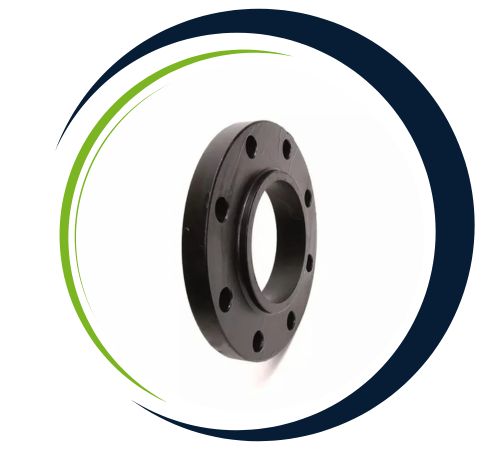

Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size: 1/2″ (15 NB) to 48″ (1200NB)
Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

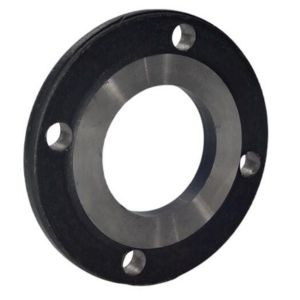

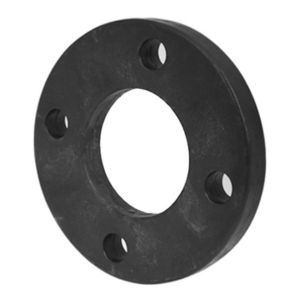

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Carbon Plate Flanges: ASTM A182 F304, F304L, F310, F316, F316L, F317, F317L
Carbon Steel Plate Flanges: ASTM A105/A105N, A694 F42, F46, F52, F60, F65, F70, A516.60, 65, 70

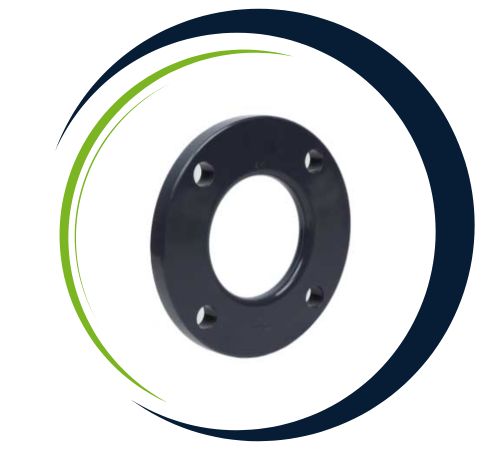

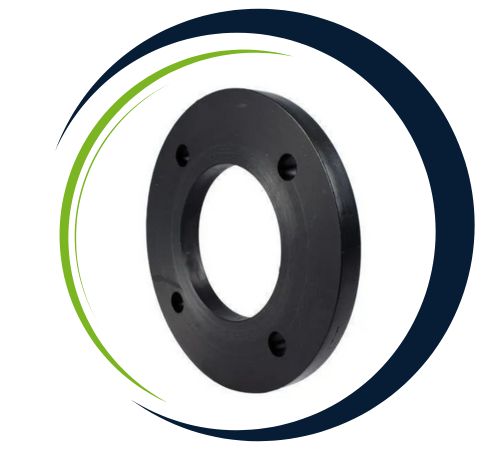

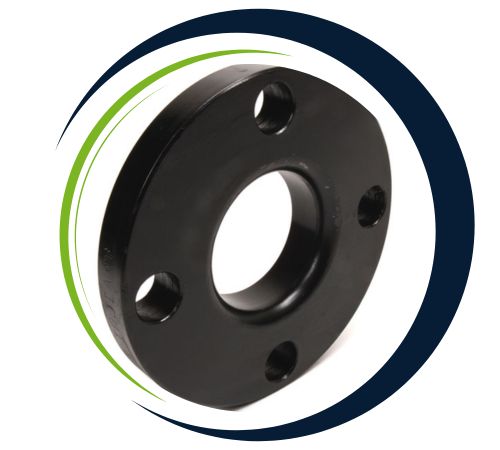

Low Temperature Carbon Steel Plate Flanges: ASTM A350, LF1, LF2 CL1/CL2, LF3 CL1/CL2
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100%
Uday Flanges, a premier supplier in Dubai, UAE, specializes in high-quality Carbon Steel Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Nominal Size Thickness (inches) | Weight (lb/ft2) |
|---|---|
| 3/16 | 7.65 |
| 1/4 | 10.2 |
| 5/16 | 12.8 |
| 3/8 | 15.3 |
| 7/16 | 17.9 |
| 1/2 | 20.4 |
| 9/16 | 22.9 |
| 5/8 | 25.5 |
| 11/16 | 28.1 |
| 3/4 | 30.6 |
| 13/16 | 33.2 |
| 7/8 | 35.7 |
| 1 | 40.8 |
| 1 1/8 | 45.9 |
| 1 1/4 | 51.0 |
| 1 3/8 | 56.1 |
| 1 1/2 | 61.2 |
| 1 5/8 | 66.3 |
| 1 3/4 | 71.4 |
| 1 7/8 | 76.5 |
| 2 | 81.6 |
| 2 1/8 | 86.7 |
| Plate Diameter | Pipes | PN 16 Plate Flange | Screws/Thread | Weight In KG | |||||
|---|---|---|---|---|---|---|---|---|---|
| (d1) | (k) | (D) | (b) | (d2) | (Thread) | (Flange Bolt holes) | (Kilogram) | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
| 250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
| 300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
| 350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
| 400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
| 450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
| 500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
| 600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
| 700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
| 800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
Yes, we offer custom sizes for Carbon Steel Plate Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
