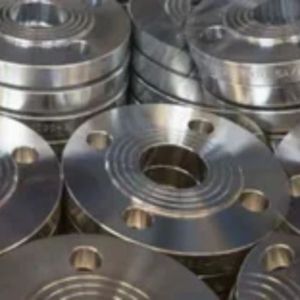

Uday Flanges is a reputable manufacturer and supplier located inDubai, UAE, with a focus on high-quality P250GH flanges. Renowned for their precision engineering and reliable performance, Uday Flanges provides products that adhere to global safety and durability standards. The P250GH flanges are particularly favored in high-temperature and high-pressure settings due to their impressive mechanical strength and material integrity. With a strong commitment to quality, prompt delivery, and competitive pricing, Uday Flanges has built a solid reputation both in the U.S. and international markets, serving a variety of industries such as oil & gas, petrochemicals, and power generation.
P250GH flanges are made from alloyed carbon steel and comply with EN 10216-2 standards. They primarily consist of carbon (0.16–0.22%), manganese (0.80–1.60%), silicon (≤0.40%), along with trace amounts of phosphorus and sulfur. These flanges boast remarkable mechanical properties, featuring a minimum yield strength of 250 MPa and tensile strength that ranges from 400 to 600 MPa. Their exceptional toughness and resistance to high temperatures make them ideal for pressure vessels and piping systems. Additionally, the material offers good weldability and formability, making it a dependable option for complex industrial applications.

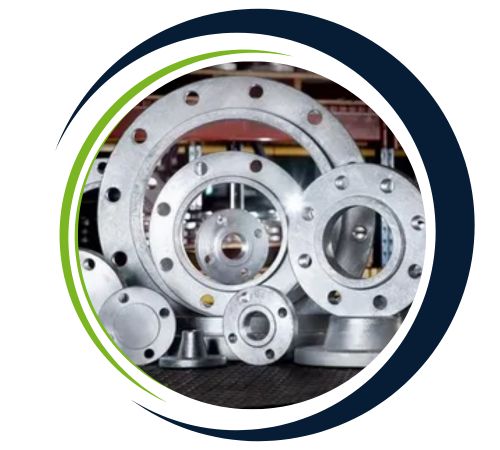

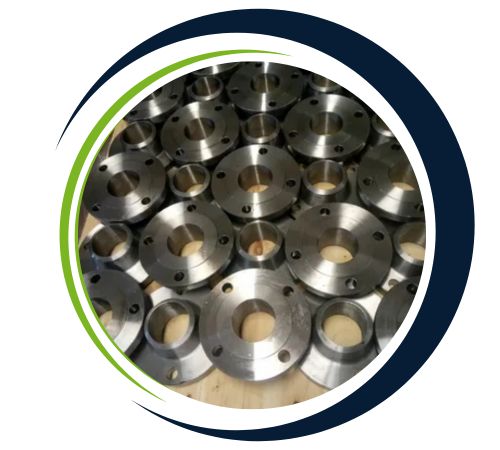

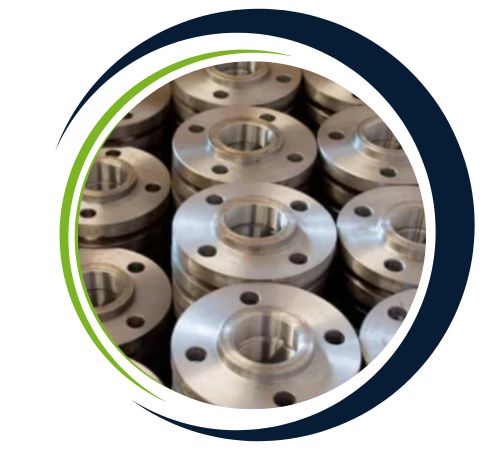

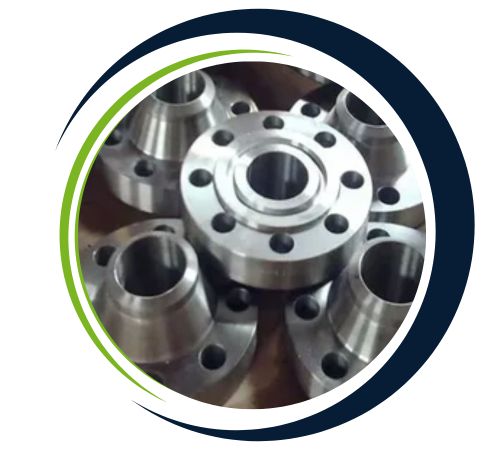

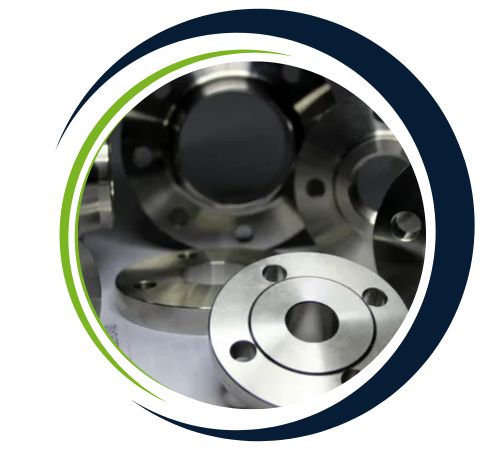

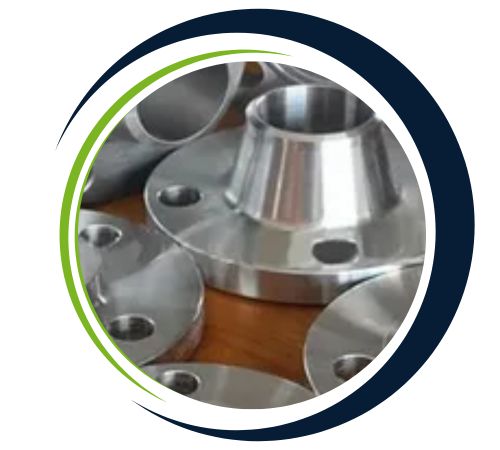

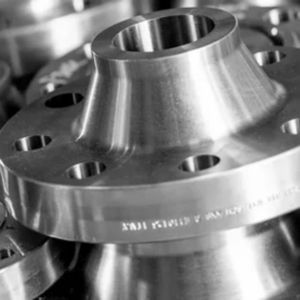

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of P250gh Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2 inch (15 Nominal Bore) to 48 Inch (1200 Nominal Bore) |
|---|---|
| Pressure Rating ANSI | Class 600, 900, 150, 2500, 300, 1500 LBS |
| Pressure Calculation in DIN | 16, 6, 25, 40, 10 Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS Standards | 5, 10, 16 20, 30, 40, 63 K |
| UNI Standards | 6, 10, 16, 25, 40 Bar |
| EN Standards | 6, 10, 16, 25, 40 Bar |
| Coating | Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated,Oil Black Paint, Yellow Transparent |
| Most common types | Screwed, Forged, Threaded, Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report , 100% Radiography Test Report etc |
| Production technique | Forged, Heat treated and machined |
| Flange Face Type | Small Tongue, Lap-Joint Face, Raised Face, Ring Type Joint, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Test | Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Direct-reading Spectrograph, Magnetic particle detector |
| Equipment | Bending machine, Sand-blasting machine, Pushing Machine,Press machine, electric bevelling machine etc |
| Carbon | Silicon | Manganese | Nickel | Phosphorus | Sulfur | Chromium | Vanadium | niobium | Titanium | Aluminum | – |
| 0.18 – 0.23 | max 0.4 | 0.3 – 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 – 0.05 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 150 | ||
| Rm – Tensile strength (MPa) (+N) | 410-540 | ||
| Nominal thickness (mm): | to 50 | 50 – 100 | 100 – 150 |
| ReH – Minimum yield strength (MPa) (+N) | 250 | 240 | 230 |
| KV – Impact energy (J) longitud., | +20° 47 | ||
| Nominal thickness (mm): | to 150 | ||
| A – Min. elongation at fracture (%) (+N) | 25 |
P250GH flanges are widely utilized in sectors that demand durability and resilience under high pressure and elevated temperatures. They are perfect for steam boilers, pressure vessels, heat exchangers, and pipeline systems in the oil & gas, petrochemical, and power generation industries. Their capacity to endure thermal stress and corrosive environments guarantees a long service life and operational efficiency. P250GH flanges are also frequently used in process engineering, refinery equipment, and chemical processing plants, where reliability and adherence to European pressure equipment standards are essential.
Yes, we offer custom sizes for P250gh Flange to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
