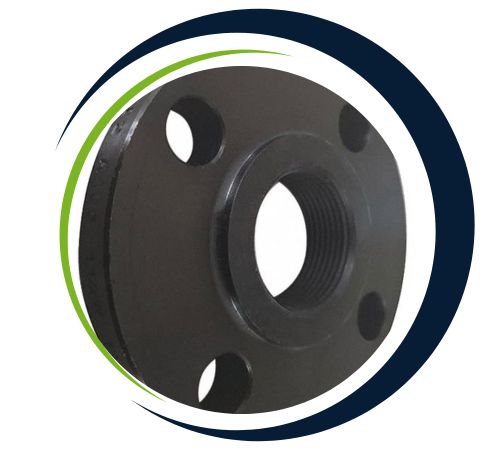

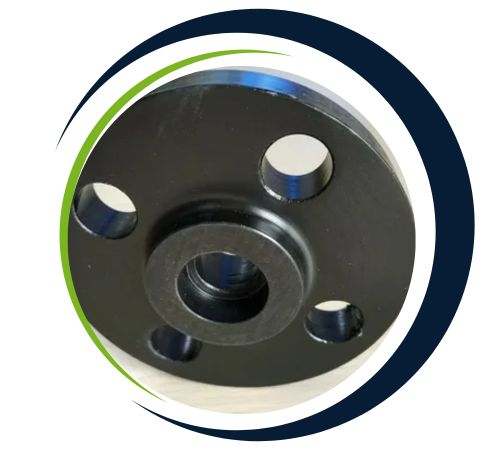

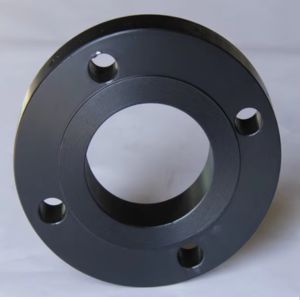

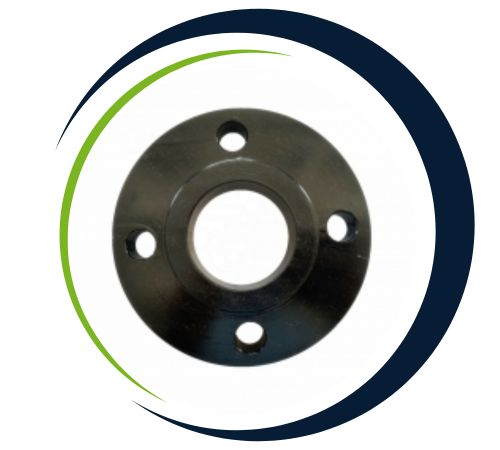

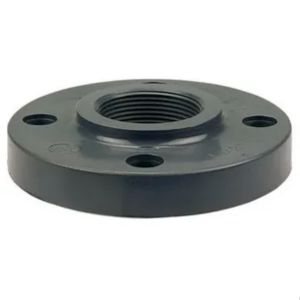

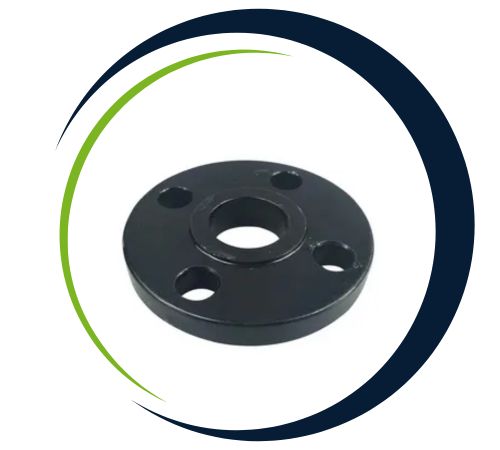

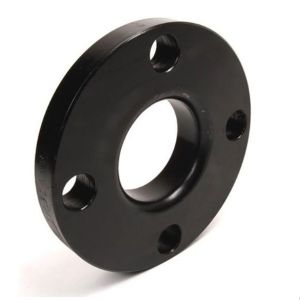

Carbon Steel Threaded Flanges are known for their impressive durability and are a go-to choice in industrial piping systems that need quick and secure connections without the hassle of welding. These flanges come with internal threads that perfectly align with the external threads on pipes, making installation a breeze—especially for low-pressure and non-critical applications. Uday Flanges, a top-notch manufacturer and supplier based in Dubai, UAE, provides precision-engineered Carbon Steel Threaded Flanges that meet international standards like ASME, ASTM, and ANSI. Renowned for their strength and versatility, these flanges find their place in the oil & gas, petrochemical, power, and water treatment sectors, ensuring reliable performance and easy maintenance.

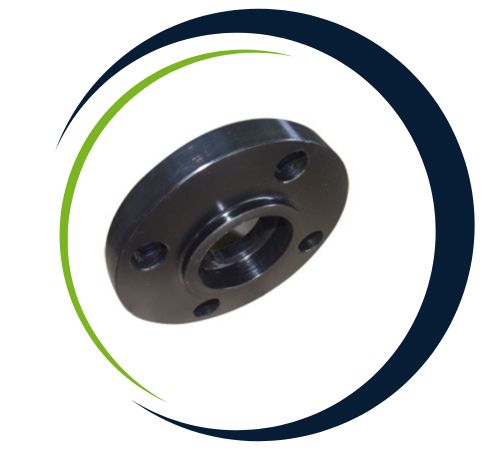

Typically crafted from grades like ASTM A105 or A350 LF2, Carbon Steel Threaded Flanges are primarily made up of carbon (up to 0.35%), along with manganese, phosphorus, sulfur, and silicon, which together provide excellent strength and toughness. Their mechanical properties boast a tensile strength ranging from 485 to 620 MPa and a yield strength between 250 and 350 MPa, along with good machinability and impact resistance. The threaded design allows for quick, non-welded connections in situations where heat input should be minimized. These flanges perform well in both ambient and moderately low temperatures, particularly when made from low-temperature carbon steel variants.
| Specification | ASTM A694 / ASME SA694 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MCarbon Steel S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |

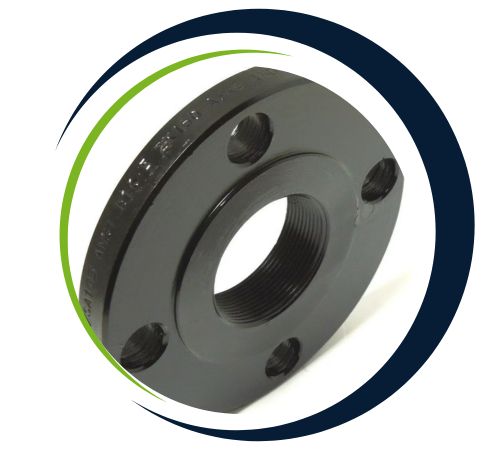

| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MCarbon Steel SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MCarbon Steel SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MCarbon Steel SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A694 is2062 Carbon Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Carbon Steel is2062, LF2, F42, A36, F60, F52, F70, F65, F56, F80, A105 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Carbon Steel Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon Steel Threaded Flanges are extensively utilized across various industries, including oil & gas, chemical processing, water treatment, fire protection systems, and power generation. They’re perfect for low-pressure pipelines, small-diameter connections, and setups that require frequent disassembly or adjustments. Common uses include connecting pipes to valves, pumps, tanks, and other equipment in steam, gas, and liquid services. Their threaded connection removes the need for welding, making them a safe choice for explosive or flammable environments where welding poses risks. Uday Flanges is proud to supply Carbon Steel Threaded Flanges that meet these diverse needs.
| Size in In | Size in Millimeter | (OD) Outer Diameter | Flange Thick. | Hub OD | Weld Neck Outer Diameter | Welding Neck Length | Bore | RF Diameter | RF Height | PCD | Weld Face |
| A | B | C | D | E | F | G | H | I | J | ||
| 1/2 | 15 | 95 | 12.7 | 38 | 21.3 | 51 | Refer Note | 34.9 | 2 | 66.7 | 1.6 |
| 3/4 | 20 | 115 | 14.3 | 48 | 26.7 | 56 | 42.9 | 2 | 82.6 | 1.6 | |
| 1 | 25 | 125 | 15.9 | 54 | 33.4 | 60 | 50.8 | 2 | 88.9 | 1.6 | |
| 1 1/4 | 32 | 135 | 17.5 | 64 | 42.2 | 64 | 63.5 | 2 | 98.4 | 1.6 | |
| 1 1/2 | 40 | 155 | 19.1 | 70 | 48.3 | 67 | 73 | 2 | 114.3 | 1.6 | |
| 2 | 50 | 165 | 20.7 | 84 | 60.3 | 68 | 92.1 | 2 | 127 | 1.6 | |
| 2 1/2 | 65 | 190 | 23.9 | 100 | 73 | 75 | 104.8 | 2 | 149.2 | 1.6 | |
| 3 | 80 | 210 | 27 | 117 | 88.9 | 78 | 127 | 2 | 168.3 | 1.6 | |
| 3 1/2 | 90 | 230 | 28.6 | 133 | 101.6 | 79 | 139.7 | 2 | 184.2 | 1.6 | |
| 4 | 100 | 255 | 30.2 | 146 | 114.3 | 84 | 157.2 | 2 | 200 | 1.6 | |
| 5 | 125 | 280 | 33.4 | 178 | 141.3 | 97 | 185.7 | 2 | 235 | 1.6 | |
| 6 | 150 | 320 | 35 | 206 | 168.3 | 97 | 215.9 | 2 | 269.9 | 1.6 | |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 1.6 | |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.4 | 1.6 | |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 1.6 | |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 1.6 | |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 1.6 | |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 1.6 | |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 1.6 | |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 1.6 |
| Welding Neck Flange Bores (in inch) | ||||||||||||||
| NPS | O D | Sch 10 | Sch 20 | Sch 30 | Std. Wall | Sch 40 | Sch 60 | Extra Strong | Sch 80 | Sch 100 | Sch 120 | Sch 140 | Sch 160 | Double Extra Strong |
| 1/2” | 0.840 | 0.674 | 0.622 | 0.622 | 0.546 | 0.546 | 0.464 | 0.252 | ||||||
| 3/4” | 1.050 | 0.884 | 0.824 | 0.824 | 0.742 | 0.742 | 0.612 | 0.434 | ||||||
| 1” | 1.315 | 1.097 | 1.049 | 1.049 | 0.957 | 0.957 | 0.815 | 0.599 | ||||||
| 1.1/4” | 1.660 | 1.442 | 1.380 | 1.380 | 1.278 | 1.278 | 1.160 | 0.896 | ||||||
| 1.1/2” | 1.900 | 1.682 | 1.610 | 1.610 | 1.500 | 1.500 | 1.338 | 1.100 | ||||||
| 2” | 2.375 | 2.157 | 2.067 | 2.067 | 1.939 | 1.939 | 1.687 | 1.503 | ||||||
| 2.1/2” | 2.875 | 2.635 | 2.469 | 2.469 | 2.323 | 2.323 | 2.125 | 1.771 | ||||||
| 3” | 3.500 | 3.260 | 3.068 | 3.068 | 2.900 | 2.900 | 2.624 | 2.300 | ||||||
| 3-1/2” | 4.000 | 3.760 | 3.548 | 3.548 | 3.364 | 3.364 | 2.728 | |||||||
| 4” | 4.500 | 4.260 | 4.026 | 4.026 | 3.826 | 3.826 | 3.624 | 3.438 | 3.152 | |||||
| 5” | 5.563 | 5.295 | 5.047 | 5.047 | 4.813 | 4.813 | 4.563 | 4.313 | 4.063 | |||||
| 6” | 6.625 | 6.357 | 6.065 | 6.065 | 5.761 | 5.761 | 5.501 | 5.187 | 4.897 | |||||
| 8” | 8.625 | 8.329 | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
| 10” | 10.750 | 10.420 | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 | 9.750 | 9.562 | 9.312 | 9.062 | 8.750 | 8.500 | 8.750 |
| 12” | 12.750 | 12.390 | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | 10.750 |
| 14” | 14.000 | 13.500 | 13.376 | 13.250 | 13.250 | 13.124 | 12.812 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | |
| 16” | 16.000 | 15.500 | 15.376 | 15.250 | 15.250 | 15.000 | 14.688 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | |
| 18” | 18.000 | 17.500 | 17.376 | 17.124 | 17.250 | 16.876 | 16.500 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | |
| 20” | 20.000 | 19.500 | 19.250 | 19.000 | 19.250 | 18.812 | 18.376 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | |
| 24” | 24.000 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | |
| 30” | 30.000 | 29.376 | 29.000 | 28.750 | 29.250 | 29.000 | ||||||||
| 36” | 36.000 | 35.376 | 35.000 | 34.750 | 35.250 | 34.500 | 35.000 | |||||||
| 42” | 42.000 | 41.250 | 41.000 | |||||||||||
Yes, we offer custom sizes for Carbon Steel Threaded Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
