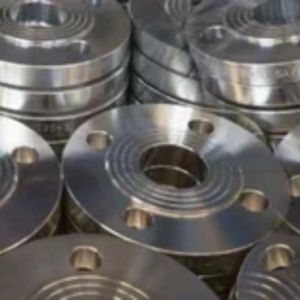

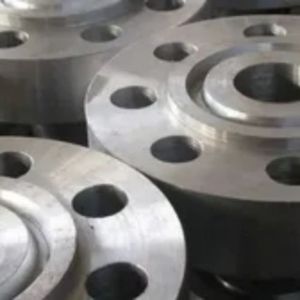

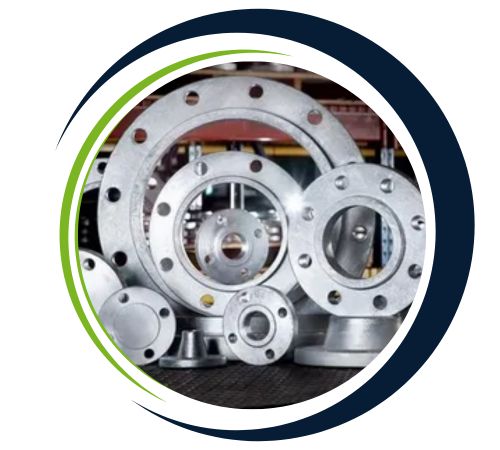

Uday Flanges is a reliable manufacturer and supplier of DIN 2576 PN10 Slip-On flanges, proudly based inDubai, UAE. Crafted to meet the German standard DIN 2576, these flanges are perfect for low-pressure piping systems that operate at PN10 (10 bar). Our slip-on flanges are expertly engineered for straightforward installation, secure sealing, and lasting durability. We offer DIN 2576 flanges in a variety of sizes and materials to cater to the diverse needs of industries like water treatment, HVAC, chemical processing, and oil & gas. At Uday Flanges, we’re dedicated to providing top-notch flange solutions, supported by prompt service and adherence to global standards.

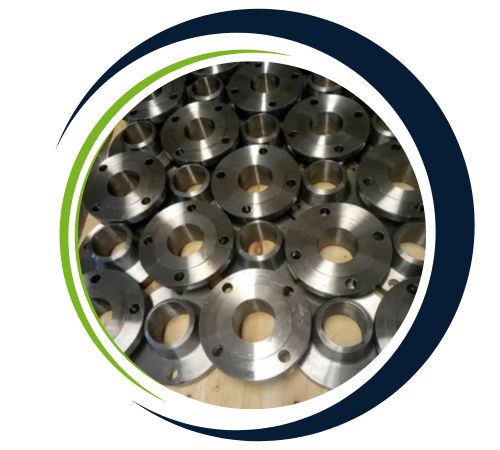

DIN 2576 PN10 Slip-On flanges are generally made from carbon steel (like ASTM A105), stainless steel (SS304/SS316), or alloy steel, depending on the specific temperature and corrosion resistance needs of the application. Their chemical makeup includes elements such as carbon, manganese, silicon, chromium, and nickel. These flanges boast a tensile strength ranging from 400 to 700 MPa and a yield strength between 250 and 450 MPa, along with excellent weldability and resistance to thermal expansion. Designed for PN10 (10 bar) pressure systems, they ensure reliable performance in moderate temperature and pressure settings while making fabrication and installation a breeze.

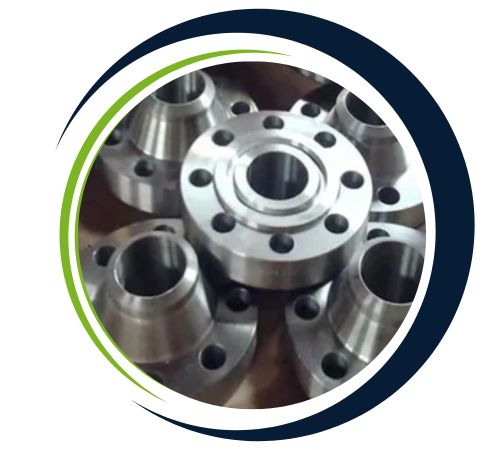

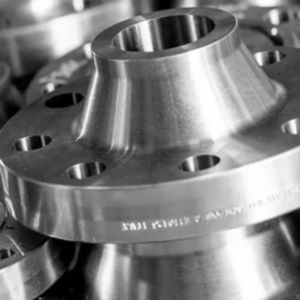

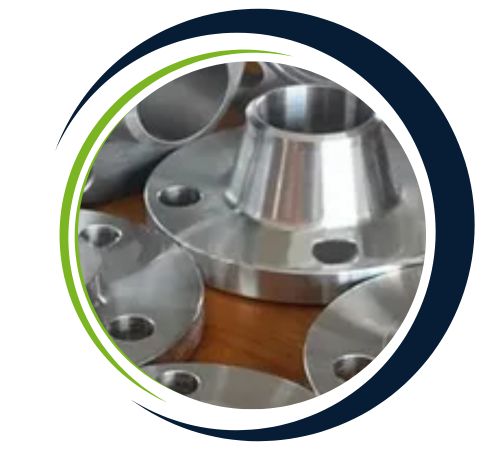

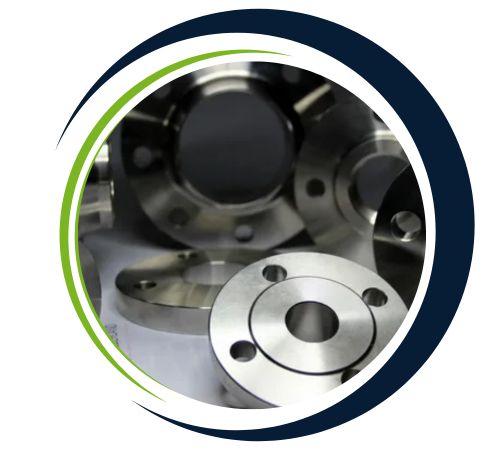

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
Pipe | Flange | Bolts | Weight of one flange 7.85 kg/ dm3) kg | |||||||
NW | d1 | ds | D | b1 | k | Number | Thread | d2 | ||
10 | 14 17.2) | 14.5 17.7 | 90 | 14 | 60 | 4 | M12 | (1/2″) | 14 | 0.613 0.605 |
15 | 20 21.3) | 20.5 21.8 | 95 | 14 | 65 | 4 | M12 | (1/2″) | 14 | 0675 0.669 |
20 | 25 26.9) | 25.5 27.4 | 105 | 16 | 75 | 4 | M12 | (1/2″) | 14 | 0.947 0.936 |
25 | 30 33.7) | 30.5 34.2 | 115 | 16 | 85 | 4 | M12 | (1/2″) | 14 | 1.14 1.11 |
32 | 38 42.4) | 38.5 42.9 | 140 | 16 | 100 | 4 | M16 | (5/8″) | 18 | 1.66 1.62 |
40 | 44.5 48.3) | 45 48.8 | 150 | 16 | 110 | 4 | M16 | (5/8″) | 18 | 1.89 1.86 |
50 | 57 60.3) | 57.5 60.8 | 165 | 18 | 125 | 4 | M16 | (5/8″) | 18 | 2.51 2.47 |
65 | 76.1) | 76.6 | 185 | 18 | 145 | 4 | M16 | (5/8″) | 18 | 3.00 |
80 | 88.9) | 89.4 | 200 | 20 | 160 | 4 | M16 | (5/8″) | 18 | 3.79 |
100 | 108 114.3) | 108.5 114.8 | 220 | 20 | 180 | 8 | M16 | (5/8″) | 18 | 4.20 4.03 |
125 | 133 139.7) | 133.5 140.2 | 250 | 22 | 210 | 8 | M16 | (5/8″) | 18 | 5.71 5.46 |
150 | 159 168.3) | 159.5 168.8 | 285 | 22 | 210 | 8 | M16 | (3/4″) | 23 | 6.72 6.57 |
175 | 191 193.7) | 192 194.7 | 315 | 24 | 270 | 8 | M20 | (3/4″) | 23 | 8.60 8.45 |
200 | 216 219.1) | 216 220.1 | 340 | 24 | 295 | 8 | M20 | (3/4″) | 23 | 9.50 9.31 |
250 | 267 273) | 268 274 | 395 | 26 | 350 | 12 | M20 | (3/4″) | 23 | 12.5 11.9 |
400 | 406.4 419 | 407.4 420 | 565 | 32 | 515 | 16 | M24 | (7/8″) | 27 | 27.9 25.9 |
500 | 508) 521 | 509 522 | 670 | 38 | 620 | 20 | M24 | (7/8″) | 27 | 37.9 41.1 |
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |

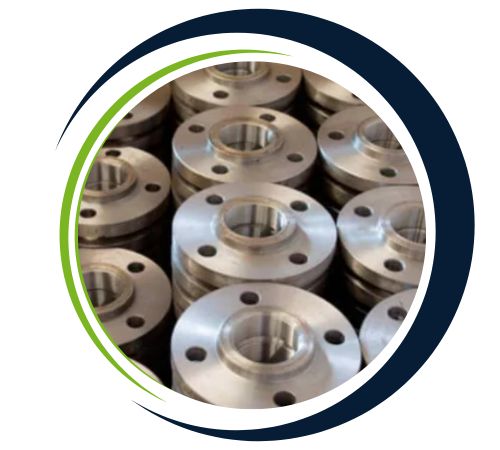

DIN 2576 PN10 Slip-On flanges find extensive use in low-pressure piping systems across a range of industries, including water supply, HVAC systems, chemical plants, fire protection, and food processing. These flanges are particularly well-suited for transporting non-corrosive or mildly corrosive fluids like water, air, oil, and steam. Their slip-on design allows for easy alignment and welding, which helps cut down on installation time and costs. Commonly utilized in both above-ground and indoor setups, DIN 2576 flanges come in various materials and sizes to meet different system requirements. Uday Flanges is here to provide you with the best options available.
Yes, we offer custom sizes for DIN 2576 PN10 Slip On Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
