DIN 2631 PN6 Weld Neck Flanges Manufacturer and Supplier in Dubai, UAE

Uday Flanges,Dubai, UAE, is a trusted manufacturer and exporter of **DIN 2631 PN6 Weld Neck Flanges** for low-pressure, high-integrity piping systems. Catering to water treatment, HVAC, food processing, and light-duty chemical applications, among other industries, Uday Flanges makes flanges strictly according to DIN, EN, and international standards. Through precise engineering, high-strength material choice, and strict quality control, the company guarantees that every flange provides superior weldability, hermetic sealing, and extended longevity in low-pressure service applications.

DIN 2631 PN6 Standards Weld Neck Flanges in Dubai, DIN 2631 PN6 Weld Neck Plate Flange in Abu Dhabi, Raised Face DIN 2631 PN6 WNRF Flanges in Al Ain, Stainless Steel DIN 2631 PN6 Weld Neck Flanges in Ajman, DIN 2631 PN6 Welding Neck Pipe Flange in Jebel Ali, Best Price of DIN 2631 PN6 Weld Neck Flange Manufacturer in UAE.

Stainless Steel DIN 2631 PN6 Weld Neck Flanges

Alloy Steel DIN 2631 PN6 Weld Neck Flanges

Alloy 20 DIN 2631 PN6 Weld Neck Flanges

**DIN 2631 PN6 Weld Neck Flanges** are Pressure Class 6 rated to 6 bar (87 psi) and offer sizes from DN10 through DN1000. These flanges are most commonly fabricated from carbon steel (e.g., C22.8), stainless steel (e.g., 1.4301 or 1.4571), or alloy steel, based on use. The weld neck type has a long taper hub that progressively relieves stress from the flange to the pipe, reducing thermal and mechanical fatigue risks. These flanges are butt-welded connections and create solid, permanent joints with high sealing integrity.

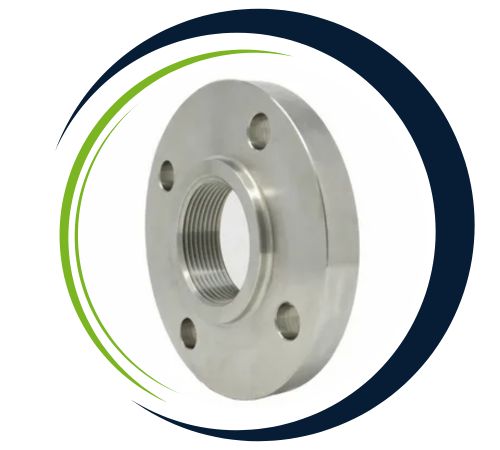

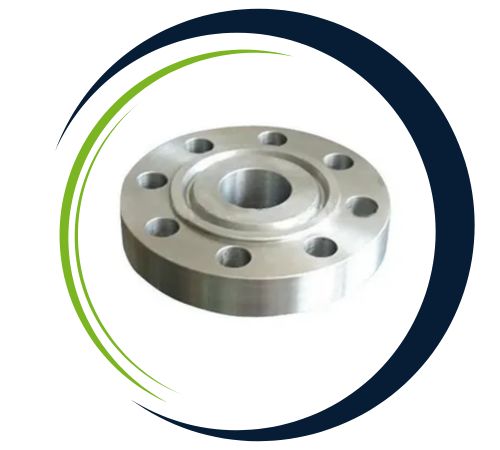

Monel DIN 2631 PN6 WNRF Flange in UAE, Hastelloy DIN 2631 PN6 Weld Neck Flanges in Dubai, Titanium DIN 2631 PN6 Welding Neck Flanges in Jebel Ali, SS DIN 2631 PN6 Weld Neck Flanges Stockist in Abu Dhabi, Nickel Alloy DIN 2631 PN6 Weld Neck Flanges in Al Ain, Inconel DIN 2631 PN6 WNRF Flanges in Ajman, Alloy Steel DIN 2631 PN6 Weld Neck Flanges, Duplex Steel DIN 2631 Weld Neck Flange, Carbon Steel DIN 2631 PN6 Welding Neck Flanges in Sharjah.

DIN 2631 PN6 Weld Neck Flanges Specification

Size Chart	1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size	DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material	Flanges Bolts, Gasket, Ring Joint
Connect Type Type	FF, RTJ, SMF, LMF, RF, LJF
Production Process	Forged, Heat Treated and Machined
Standard	ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment	Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2631 PN6 Weld Neck Flange Dimensions

Pipe			Flange				Neck				Raised face		Screws			Weight
Pipe			Flange				Neck				Raised face		Screws			(7,85 Kg/dm3)
Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series	D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
15	–	20	80	12	55	30	28	2	4	6	40	2	4	M 10	11	0,392
15	21,3	–	80	12	55	30	30	2	4	6	40	2	4	M 10	11	0,392
20	–	25	90	14	65	32	35	2,3	4	6	50	2	4	M 10	11	0,592
20	26,9	–	90	14	65	32	38	2,3	4	6	50	2	4	M 10	11	0,592
25	–	30	100	14	75	35	40	2,6	4	6	60	2	4	M 10	11	0,747
25	33,7	–	100	14	75	35	42	2,6	4	6	60	2	4	M 10	11	0,747
32	–	38	120	14	90	35	50	2,6	6	6	70	2	4	M 12	14	1,05
32	42,4	–	120	14	90	35	55	2,6	6	6	70	2	4	M 12	14	1,05
40	–	44,5	130	14	100	38	58	2,6	6	7	80	3	4	M 12	14	1,18
40	48,3	–	130	14	100	38	62	2,6	6	7	80	3	4	M 12	14	1,18
50	–	57	140	14	110	38	70	2,9	6	8	90	3	4	M 12	14	1,34
50	60,3	–	140	14	110	38	74	2,9	6	8	90	3	4	M 12	14	1,34
65	76,1	–	160	14	130	38	88	2,9	6	9	110	3	4	M 12	14	1,67
80	88,9	–	190	16	150	42	102	3,2	8	10	128	3	4	M 16	18	2,71
100	–	108	210	16	170	45	122	3,6	8	10	148	3	4	M 16	18	3,24
100	114,3		210	16	170	45	130	3,6	8	10	148	3	4	M 16	18	3,24
125	–	133	240	18	200	48	148	4	8	10	178	3	8	M 16	18	4,49
125	139,7	–	240	18	200	48	155	4	8	10	178	3	8	M 16	18	4,49
150	–	159	265	18	225	48	172	4,5	10	12	202	3	8	M 16	18	5,15
150	168,3	–	265	18	225	48	184	4,5	10	12	202	3	8	M 16	18	5,15
200	219,1	–	320	20	280	55	236	5,9	10	15	258	3	8	M 16	18	7,78
250	–	267	375	22	335	60	282	6,3	12	15	312	3	12	M 16	18	10,8
250	273	–	375	22	335	60	290	6,3	12	15	312	3	12	M 16	18	10,8
300	323,9	–	440	22	395	62	342	7,1	15	15	365	4	12	M 20	22	14
350	355,6	–	490	22	445	62	385	7,1	12	15	415	4	12	M 20	22	18,5
350	–	368	490	22	445	62	385	7,1	12	15	415	4	12	M 20	22	16,7
400	406,4	–	540	22	495	65	438	7,1	12	15	465	4	16	M 20	22	21,2
400	–	419	540	22	495	65	438	7,1	12	15	465	4	16	M 20	22	19
500	508	–	645	24	600	68	538	7,1	12	15	570	4	20	M 20	22	28,6
600	610	–	755	24	705	70	640	7,1	12	16	670	5	20	M 24	26	31,5
700	711	–	860	24	810	70	740	7,1	12	16	775	5	24	M 24	26	37,4
800	813	–	975	24	920	70	842	7,1	12	16	880	5	24	M 27	30	46,1
900	914	–	1075	26	1020	70	942	7,1	12	16	980	5	24	M 27	30	55,6
1000	1016	–	1175	26	1120	70	1045	7,1	16	16	1080	5	28	M 27	30	61,9

Largest DIN 2631 PN6 Weld Neck Flanges Supplier in Dubai, UAE

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of DIN 2631 PN6 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

**DIN 2631 PN6 Weld Neck Flanges** are best suited for low-pressure pipe systems where smooth flow, structural integrity, and leak prevention are desirable. Typical applications include drinking water mains, wastewater treatment facilities, food and beverage processing units, and low-pressure steam mains. Their strong welded joint and smooth bore render them appropriate for hygienic and clean operations, with the rugged construction guaranteeing prolonged service despite thermal cycling or vibration environments. DIN 2631 PN6 flanges are a reliable choice for low-pressure systems that need safety, efficiency, and longevity.

DIN 2631 PN6 Welding Neck Flanges Stockist in Jebel Ali, DIN 2631 PN6 Weld Neck Flanges Supplier in Abu Dhabi, DIN 2631 PN6 Weld Neck Flanges Supplier in Dubai, DIN 2631 PN6 Welding Neck Flanges Stockist in Sharjah, DIN 2631 PN6 Weld Neck Flanges Manufacturer in MM, DIN 2631 PN6 WNRF Flanges Manufacturer in UAE.

Types of DIN 2631 PN6 Weld Neck Flanges

Are Custom Sizes Available for DIN 2631 PN6 Weld Neck Flanges?

Yes, we offer custom sizes for DIN 2631 PN6 Weld Neck Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.

DIN 2631 PN6 Weld Neck Plate Flange Size Chart

NPS NPS (inch)
NPS NPS (inch)	Diammeter of Flange (inch)	No. of Bolts	Diammeter of Bolts (inch)	Diammeter of Bolt Holes (inch)	Bolt Circle (inch)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

Widest Range of DIN 2631 PN6 Weld Neck Flanges in UAE.

Nickel Alloy DIN 2631 PN6 Welding Neck Flange	Mild Steel DIN 2631 PN6 Weld Neck Flange
Carbon Steel DIN 2631 PN6 Welding Neck Flange	DIN 2631 PN6 Weld Neck RF Flange Supplier in UAE
DIN 2631 PN6 Weld Neck Flange Dimensions	Raised Face DIN 2631 PN6 Weld Neck Flange Manufacturer
18 inch DIN 2631 PN6 Carbon Steel Weld Neck Flange	DIN 2631 PN6 Weld Neck Flange Dimensions in mm
Alloy Steel DIN 2631 PN6 Welding Neck Flanges	Copper Nickel DIN 2631 PN6 Weld Neck Flanges at Best Price
DIN 2631 PN6 Welding Neck FF Flange Supplier	Suppliers of DIN 2631 PN6 Weld Neck Flange
German Standard DIN 2631 PN6 Weld Neck Flanges	DIN 2631 PN6 Weld Neck Flange Supplier in Sharjah
DIN 2631 PN6 Weld Neck Flange Manufacturer	Flat Face DIN 2631 PN6 Weld Neck Flange Manufacturer
DIN 2631 PN6 WNRF Flange Stockist in UAE	Raised Faced DIN 2631 PN6 welding-neck flanges Dealer in UAE
Stainless Steel DIN 2631 PN6 Weld Neck Flange	ASTM B564 Raised Faced DIN 2631 PN6 Weld Neck Flanges
DIN 2631 PN6 WNRF Flange Exporter	DIN 2631 PN6 Weld Neck Flange Pressure Ratings
Raised Face DIN 2631 PN6 Weld Neck Plate Flanges	Titanium DIN 2631 PN6 Welding Neck Flanges
DIN 2631 PN6 WNRF Flanges Supplier in Abu Dhabi	Alloy Steel DIN 2631 PN6 Weld Neck Flanges Manufacturer in UAE
DIN 2631 PN6 Weld Neck Pipe Flanges Supplier in Jebel Ali	Duplex Steel DIN 2631 PN6 Weld Neck Flanges
4 inch Stainless Steel DIN 2631 PN6 Weld Neck Flange	DIN 2631 PN6 Weld Neck RF Flanges Stockholder
DIN 2631 PN6 Welding Neck Flanges Supplier in Dubai	MS DIN 2631 PN6 Weld Neck Flange
30 inch DIN 2631 PN6 Weld Neck Flange Dealer	Raised Face DIN 2631 PN6 Weld Neck Flanges Manufacturer
8 Inch DIN 2631 PN6 Welding Neck Pipe Flanges	DIN 2631 PN6 Weld Neck Flanges Stockist
Carbon Steel Raised Face DIN 2631 PN6 Weld Neck Flange Stockist	Duplex Steel DIN 2631 PN6 WNRF Flanges Supplier in Dubai
ASME SA105N Raised Faced DIN 2631 PN6 Weld Neck Flanges	18 inch Carbon Steel DIN 2631 PN6 Weld Neck Flange
DIN 2631 PN6 Weld Neck Pipe Flanges Wholesaler	DIN 2631 PN6 WNRF Flanges Supplier
DIN 2631 PN6 Large Diameter Weld Neck Flange	30 Inch DIN 2631 PN6 Weld Neck Pipe Flange Dimensions
DIN 2631 PN6 WNRF Flanges Distributor in Dubai	Flat Face DIN 2631 PN6 Weld Neck Flanges Exporter

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
