Uday Flanges is a reliable manufacturer and supplier of DIN 2641 PN6 Lap Joint Flanges, proudly based inDubai, UAE. They provide top-notch flange solutions that adhere to both German and international piping standards. These flanges are perfect for low-pressure applications where you need to frequently disassemble and maintain your systems. The DIN 2641 PN6 flanges come with a loose plate design, which is typically paired with a stub end, making alignment and matching bolt holes a breeze. Uday Flanges ensures that their products are precision-made from high-quality materials, guaranteeing durability, corrosion resistance, and cost-effectiveness for various industries, including water treatment, HVAC, and chemical processing.
When it comes to materials, DIN 2641 PN6 Lap Joint Flanges are generally crafted from carbon steel, stainless steel, or alloy steel, depending on the specific service environment. They are designed to handle pressure ratings of up to 6 bar (PN6) and boast moderate mechanical properties that are well-suited for low-pressure systems. You can expect typical properties like tensile strength ranging from 250 to 450 MPa, along with good ductility that makes fabrication and installation straightforward. The loose plate structure helps to minimize stress on the pipe and allows for easy rotation to align bolt holes, making these flanges ideal for systems that require regular maintenance or alignment tweaks.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Pipe Parameter | Flange Dimension | Screw Dimension | Flange Weight | |||||||
| DN | ISO | DIN | D | d6 | b | k | e | No. of holes | d2 | KG/PCS |
| 10 | – | 14 | 75 | 16 | 10 | 50 | 2 | 4 | 11 | 0.3 |
| 17.2 | – | 75 | 19 | 10 | 50 | 2 | 4 | 11 | 0.29 | |
| 15 | – | 20 | 80 | 22 | 10 | 55 | 2 | 4 | 11 | 0.33 |
| 21.3 | – | 80 | 24 | 10 | 55 | 2 | 4 | 11 | 0.33 | |
| 20 | – | 25 | 90 | 28 | 10 | 65 | 2 | 4 | 11 | 0.42 |
| 26.9 | – | 90 | 30 | 10 | 65 | 2 | 4 | 11 | 0.41 | |
| 25 | – | 30 | 100 | 33 | 12 | 75 | 3 | 4 | 11 | 0.62 |
| 33.7 | – | 100 | 36 | 12 | 75 | 3 | 4 | 11 | 0.61 | |
| 32 | – | 38 | 120 | 42 | 12 | 90 | 3 | 4 | 14 | 0.88 |
| 42.4 | – | 120 | 46 | 12 | 90 | 3 | 4 | 14 | 0.85 | |
| 40 | – | 44.5 | 130 | 50 | 12 | 100 | 3 | 4 | 14 | 1.01 |
| 48.3 | – | 130 | 54 | 12 | 100 | 3 | 4 | 14 | 0.98 | |
| 50 | – | 57 | 140 | 62 | 12 | 110 | 3 | 4 | 14 | 1.11 |
| 60.3 | – | 140 | 65 | 12 | 110 | 3 | 4 | 14 | 1.08 | |
| 65 | 76.1 | – | 160 | 81 | 12 | 130 | 3 | 4 | 14 | 1.35 |
| 80 | 88.9 | – | 190 | 94 | 14 | 150 | 3 | 4 | 18 | 2.24 |
| 100 | – | 108 | 210 | 113 | 14 | 170 | 3 | 4 | 18 | 2.59 |
| 114.3 | – | 210 | 119 | 14 | 170 | 3 | 4 | 18 | 2.47 | |
| 125 | – | 133 | 240 | 138 | 14 | 200 | 3 | 8 | 18 | 3.1 |
| 139.7 | – | 240 | 145 | 14 | 200 | 3 | 8 | 18 | 2.93 | |
| 150 | – | 159 | 265 | 164 | 14 | 225 | 3 | 8 | 18 | 3.52 |
| 168.3 | – | 265 | 173 | 14 | 225 | 3 | 8 | 18 | 3.25 | |
| 200 | 219.1 | – | 320 | 225 | 16 | 280 | 3 | 8 | 18 | 4.85 |
| 250 | – | 267 | 375 | 273 | 20 | 335 | 3 | 12 | 18 | 7.67 |
| 273 | – | 375 | 279 | 20 | 335 | 3 | 12 | 18 | 7.26 | |
| 300 | 323.9 | – | 440 | 329 | 24 | 395 | 4 | 12 | 22 | 11.77 |
| 350 | 355.6 | – | 490 | 362 | 26 | 445 | 4 | 12 | 22 | 16.55 |
| – | 368 | 490 | 374 | 26 | 445 | 4 | 12 | 22 | 15.13 | |
| 400 | 406.4 | – | 540 | 413 | 28 | 495 | 4 | 16 | 22 | 19.56 |
| – | 419 | 540 | 426 | 28 | 495 | 4 | 16 | 22 | 17.67 | |
| 500 | 508 | – | 645 | 517 | 32 | 600 | 4 | 20 | 22 | 27.43 |
| 600 | 610 | – | 755 | 618 | 36 | 705 | 4 | 20 | 26 | 38.75 |
| 700 | 711 | – | 860 | 721 | 40 | 810 | 4 | 24 | 26 | 50.19 |
| 800 | 813 | – | 975 | 824 | 44 | 920 | 4 | 24 | 30 | 67.83 |
| 900 | 914 | – | 1075 | 926 | 48 | 1020 | 4 | 24 | 30 | 81.84 |
| 1000 | 1016 | – | 1175 | 1028 | 52 | 1120 | 4 | 28 | 30 | 95.74 |
| 1200 | 1220 | – | 1405 | 1232 | 60 | 1340 | 5 | 32 | 33 | 155.87 |
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of DIN 2641 PN6 Lap Joint Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find DIN 2641 PN6 Lap Joint Flanges in a wide range of low-pressure, non-critical piping systems where corrosion resistance and easy disassembly are key. They’re commonly used in industries such as water distribution, wastewater management, food processing, fire protection systems, and light chemical applications. These flanges are particularly well-suited for piping systems with lined or coated pipes, as welding could potentially damage the lining. Thanks to their lap joint design, installation and removal are quick and hassle-free, which helps to minimize downtime during maintenance. Overall, DIN 2641 flanges offer a cost-effective solution for systems operating under mild pressure and temperature conditions.
Yes, we offer custom sizes for DIN 2641 PN6 Lap Joint Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2641 PN6 Lap Joint Flange Dimensions | Raised Face DIN 2641 PN6 Lap Joint Flange Manufacturer |

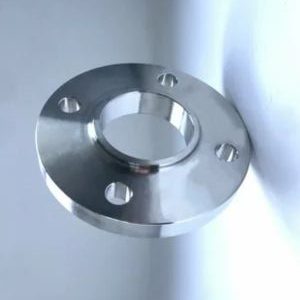

| Alloy Steel DIN 2641 PN6 Lapped Joint Flanges | Copper Nickel DIN 2641 PN6 Lap Joint Flanges at Best Price |
| DIN 2641 PN6 Lap Joint Flange Manufacturer | Flat Face DIN 2641 PN6 Lap Joint Flange Manufacturer |
| 18 inch DIN 2641 PN6 Carbon Steel Lap Joint Flange | DIN 2641 PN6 Lap Joint Flange Dimensions in mm |

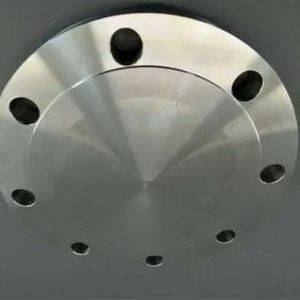

| Stainless Steel DIN 2641 PN6 Lap Joint Flange | ASTM B564 Raised Faced DIN 2641 PN6 Lap Joint Flanges |
| DIN 2641 PN6 LJ Flange Exporter | DIN 2641 PN6 Lap Joint Flange Pressure Ratings |
| DIN 2641 PN6 LJ Flange Stockist in UAE | Raised Faced DIN 2641 PN6 Slip-On flanges Dealer in UAE |
| DIN 2641 PN6 LJ Flanges Supplier in Dubai | Alloy Steel DIN 2641 PN6 Lap Joint Flanges Manufacturer in UAE |
| Raised Face DIN 2641 PN6 Lap Joint Plate Flanges | Titanium DIN 2641 PN6 Lapped Joint Flanges |
| DIN 2641 PN6 Lapped Joint FF Flange Supplier | Suppliers of DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Supplier in Jebel Ali | Duplex Steel DIN 2641 PN6 Lap Joint Flanges |
| 4 inch Stainless Steel DIN 2641 PN6 Lap Joint Flange | DIN 2641 PN6 Lap Joint RF Flanges Stockholder |
| 30 inch DIN 2641 PN6 Lap Joint Flange Dealer | Raised Face DIN 2641 PN6 Lap Joint Flanges Manufacturer |
| 8 Inch DIN 2641 PN6 Lapped Joint Pipe Flanges | DIN 2641 PN6 Lap Joint Flanges Stockist |
| Carbon Steel Raised Face DIN 2641 PN6 Lap Joint Flange Stockist | Duplex Steel DIN 2641 PN6 LJ Flanges Supplier in Dubai |
| DIN 2641 PN6 LJ Flanges Distributor in Abu Dhabi | Flat Face DIN 2641 PN6 Lap Joint Flanges Exporter |
| DIN 2641 PN6 Lapped Joint Flanges Supplier in Al Ain | MS DIN 2641 PN6 Lap Joint Flange |
| ASME SA105N Raised Faced DIN 2641 PN6 Lap Joint Flanges | 18 inch Carbon Steel DIN 2641 PN6 Lap Joint Flange |
| DIN 2641 PN6 Lap Joint Pipe Flanges Wholesaler | DIN 2641 PN6 LJ Flanges Supplier |
| Nickel Alloy DIN 2641 PN6 Lapped Joint Flange | Mild Steel DIN 2641 PN6 Lap Joint Flange |
| Carbon Steel DIN 2641 PN6 Lapped Joint Flange | DIN 2641 PN6 Lap Joint RF Flange Supplier |
| German Standard DIN 2641 PN6 Lap Joint Flanges | DIN 2641 PN6 Lap Joint Flange Supplier in Sharjah |
| DIN 2641 PN6 Large Diameter Lap Joint Flange | 30 Inch DIN 2641 PN6 Lap Joint Pipe Flange Dimensions |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
