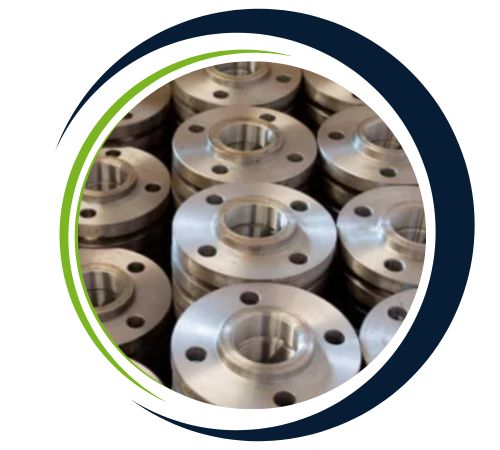

Uday Flanges is a trusted name in the manufacturing and supply of SS400 Flanges, proudly catering to clients throughoutDubai, UAE, with affordable and reliable flange solutions. SS400, a popular structural carbon steel grade, is celebrated for its strength, workability, and cost-effectiveness. Our SS400 Flanges are crafted for general-purpose applications where moderate strength and dependable performance are essential. With a focus on precision and compliance with international standards, these flanges are perfect for structural piping, fabrication, and industrial systems. At Uday Flanges, we prioritize timely delivery, consistent quality, and responsive customer support for all your carbon steel flange needs.
Made from SS400 carbon steel, these flanges boast impressive tensile strength (around 400–510 MPa) and yield strength of about 245 MPa. They offer excellent weldability, machinability, and moderate corrosion resistance when properly coated or galvanized. While SS400 is not designed for high-temperature or high-pressure applications, it still provides the durability and mechanical stability required for many projects. Our SS400 Flanges come in various types—like slip-on, weld neck, and blind—offering flexibility for a wide array of industrial and structural applications where balancing cost and strength is crucial.
Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of SS400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | ASTM SS400 and ASME SS400 |
|---|---|
| ASME B16.5 Carbon Steel SS400 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel SS400 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel SS400 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel SS400 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel SS400 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel SS400 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel SS400 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Carbon Steel SS400 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Large Male-Female (LMF), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove |
| Most common types of Carbon Steel SS400 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Carbon Steel SS400 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Nickel |
0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
Commonly found in general engineering, construction, and fabrication sectors, SS400 Flanges are ideal for structural frameworks, machinery bases, support systems, and non-critical piping connections. In HVAC systems, water distribution, and fabrication workshops, these flanges ensure reliable connections without the need for high-performance alloys. They are frequently used in low-pressure steam and fluid systems, as well as in building infrastructure where safety and simplicity are paramount. With their wide availability and ease of fabrication, SS400 flanges are a practical choice for everyday industrial applications.
Yes, we offer custom sizes for SS400 Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
