Uday Flanges is a seasoned Stainless Steel 202 flanges manufacturer and supplier, with its headquarters in Dubai, UAE. Uday Flanges prides itself on providing affordable yet long-lasting flange solutions to a diverse array of industries such as construction, water treatment, automotive, and general engineering. Stainless Steel 202 is an austenitic chromium-nickel-manganese stainless steel with good mechanical properties and medium corrosion resistance at a lower price than 300-series grades. Uday Flanges guarantees precise manufacturing, conformity to industry standards, and timely delivery, making it a reliable ally for high-grade and cost-effective stainless steel flange solutions.
Stainless Steel 202 flanges consist of about 17–19% chromium, 4–6% nickel, and 7.5–10% manganese. The lower nickel content and higher manganese content make it an economical substitute for 304 but with good mechanical strength and corrosion resistance in mildly aggressive conditions. These flanges have a tensile strength of approximately 515 MPa and a yield strength of approximately 275 MPa. While not ideal for extremely corrosive or marine applications, 202 flanges possess adequate ductility, formability, and toughness for indoor or lightly outdoor industrial applications.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |

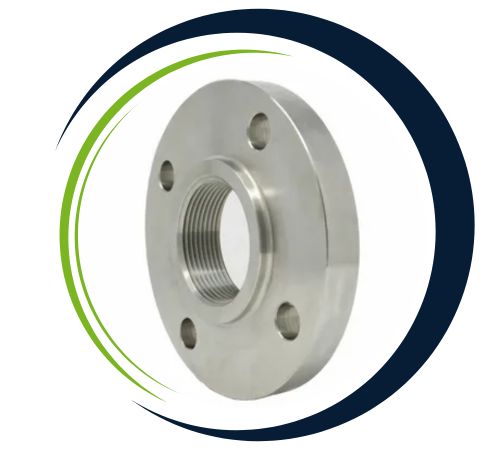

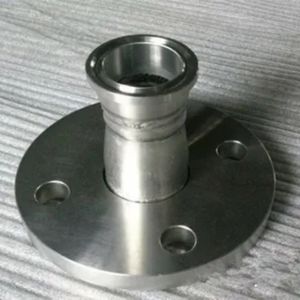

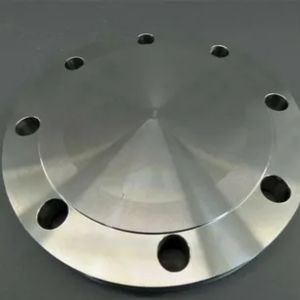

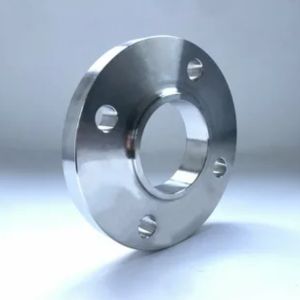

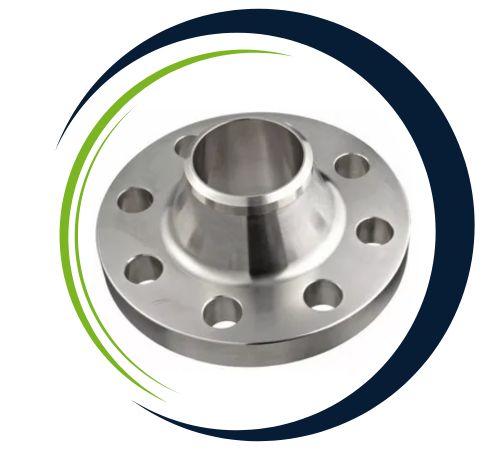

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Stainless Steel 202 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
Stainless Steel 202 flanges are most commonly utilized for non-critical or moderately corrosive applications where mechanical strength and economy of cost are prime considerations. Applications include structural housings, food processing machinery (non-marine), waterways, tanks, residential water systems, and general industrial piping. They also find application in some automotive parts and architectural design because of their appearance and moderate corrosion resistance. Although not intended for chloride or chemical-intensive applications, 202 flanges handle well in dry conditions. Even with periodic maintenance, 202 flanges can be an economic and functional solution for most general-purpose applications.
Yes, we offer custom sizes for Stainless Steel 202 flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
