Dubai, UAEUday Flanges is a reliable supplier and manufacturer of Stainless Steel 348H flanges, established in Dubai, UAE. Uday Flanges specializes in high-temperature, corrosion-resistant flange solutions and serves critical applications in industries like power generation, aerospace, petrochemicals, and thermal processing. Stainless Steel 348H is a niobium-stabilized, high-carbon, austenitic stainless steel developed to provide increased creep strength and superior resistance to intergranular corrosion following welding. With a clear focus on reliability, quality, and punctual delivery, Uday Flanges continues to be an ideal partner for customers requiring high-performance and long-lasting stainless steel flanges.
Stainless Steel 348H flanges consist mainly of 17–20% chromium and 8–11% nickel with the addition of niobium (columbium) for stabilization and increased carbon content (0.04–0.10%) compared to regular 348. The addition of niobium increases resistance to sensitization and provides structural integrity upon exposure to high temperatures for extended periods. These flanges commonly have tensile strength of about 550 MPa and yield strength of about 240 MPa. 348H retains very good mechanical strength, creep resistance, and corrosion protection in oxidizing and heat-consuming environments and provides good weldability and toughness as well.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |

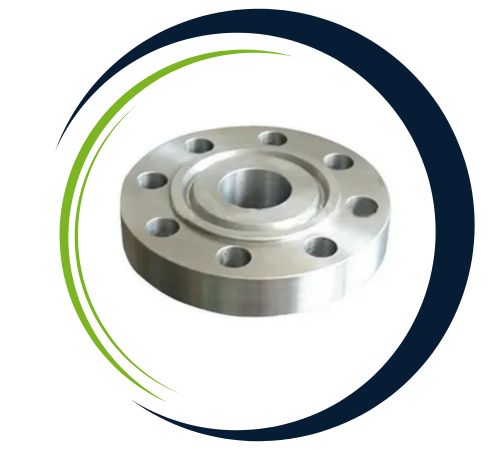

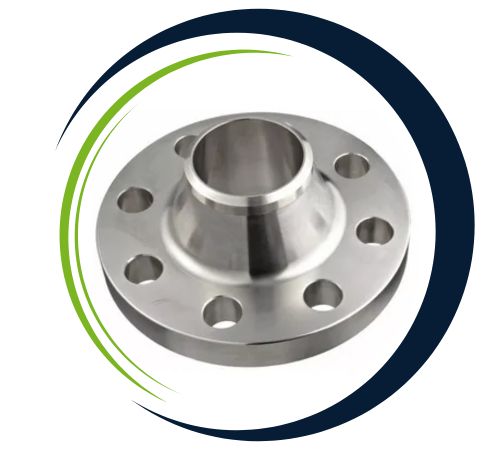

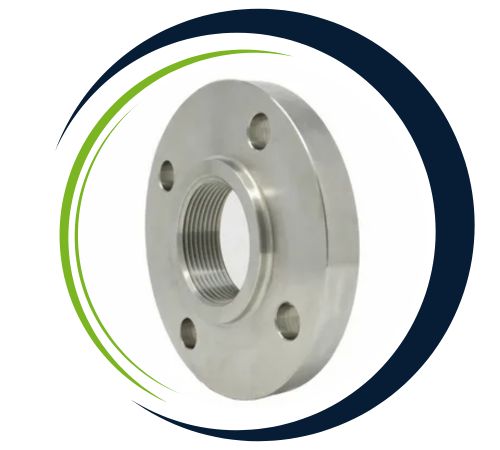

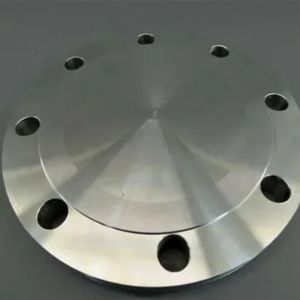

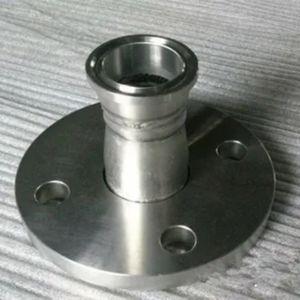

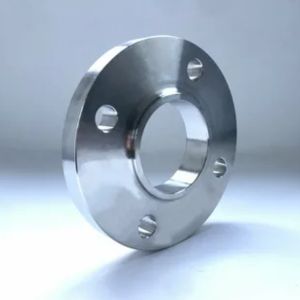

Uday Flanges, a leading supplier in Dubai, UAE, offers an extensive selection of Stainless Steel 348H Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Stainless Steel 348H flanges have extensive use in high-temperature and high-pressure systems that require excellent resistance to thermal fatigue and corrosion. Some typical uses are superheaters, heat exchangers, boiler parts, pressure vessels, reactor piping, and exhaust systems. As they have a stabilized structure, they find special application in welded components in the chemical, petrochemical, and nuclear industry. They also work well in the case of repeated sequences of heating and cooling. Their resistance to intergranular corrosion without the requirement for postweld heat treatment makes them a proven method of choice for critical process piping and thermal equipment.
| SS 348H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Yes, we offer custom sizes for Stainless Steel 348H Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
