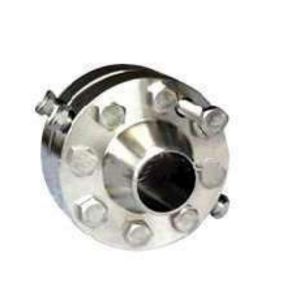

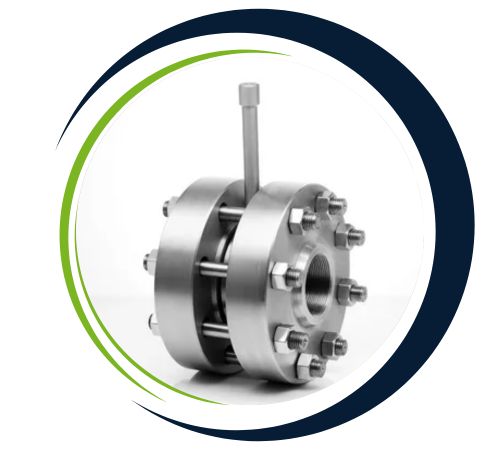

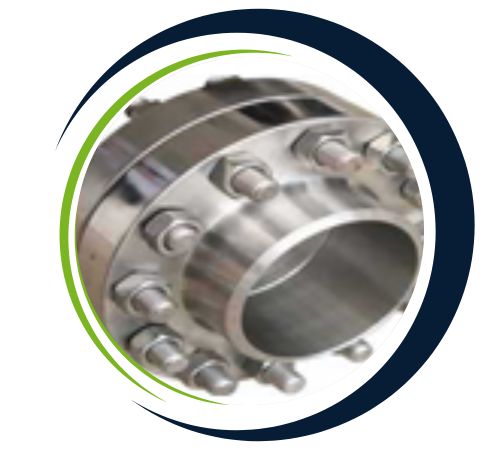

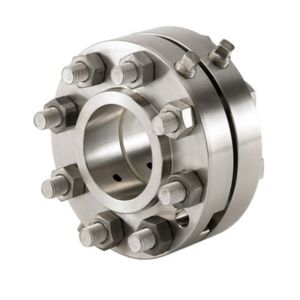

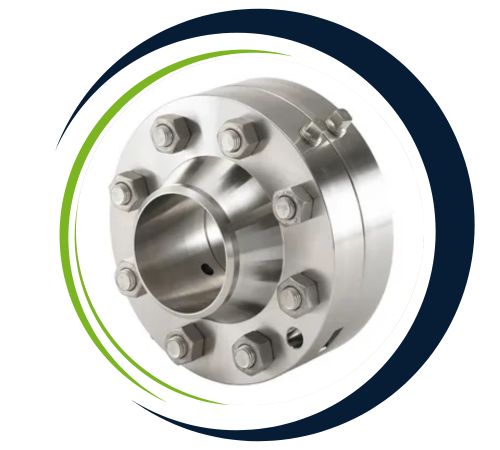

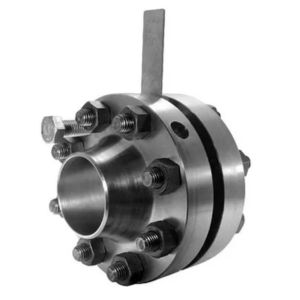

Uday Flanges is a reliable manufacturer and supplier of Stainless Steel Orifice Flanges in Dubai, UAE. With precision flange engineering expertise, Uday Flanges provides high-quality orifice flanges for precise flow measurement in piping systems. The flanges are utilized in combination with orifice plates and flow meters to measure fluid or gas flow rates. Designed to satisfy ANSI, ASME, and global standards, Uday Flanges’ Stainless Steel Orifice Flanges are perfectly suited for oil and gas, power generation, chemical processing, and water treatment processes. Clients rely on Uday Flanges for dependable, long-lasting, and performance-based solutions.
Stainless Steel Orifice Flanges are generally constructed from grades like 304, 304L, 316, or 316L stainless steel, which provide excellent corrosion protection, long life, and mechanical resistance. These flanges typically possess tensile strength from 485–585 MPa and yield strength of 170–240 MPa, depending on the grade. Their austenitic structure promotes good weldability, toughness, and high-temperature resistance. Orifice flanges have tapped holes for pressure measurement and are typically used with orifice plates and gaskets. The stainless steel composition provides long service life even in corrosive or high-pressure applications.
Uday Flanges, a premier supplier in Dubai, UAE, specializes in high-quality Stainless Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
| Specifications | ASTM A182 / ASME SA182 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4948 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4919 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
Stainless Steel Orifice Flanges are widely employed in piping systems where accurate flow measurement and control are necessary. Some typical uses are refineries, petrochemical facilities, power plants, water treatment, and HVAC systems. Orifice flanges assist in the monitoring and control of flow in liquids, gases, and steam. Orifice flanges find application particularly where the efficiency of a process, pressure drop measurement, and fluid dynamics are of utmost importance. Their strong build and resistance to corrosion make them ideal for exposure to both aggressive chemicals and high temperatures, making them assure safety, reliability, and precision in vital industrial applications.
Yes, we offer custom sizes for Stainless Steel Orifice Flanges to meet specific project needs. Our team at Uday Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@udayflanges.ae.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
